Maximizing Performance in Energy Storage Systems with OEM Sheet Metal Solutions

The Strategic Role of Sheet Metal in Modern Energy Infrastructure

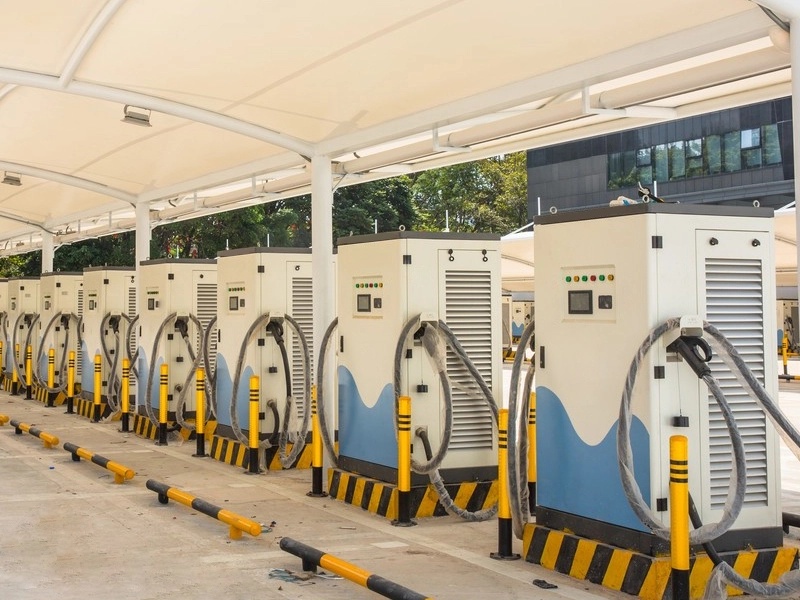

The worldwide move to cleaner energy has made Energy Storage Systems (ESS) and Ultra-High Voltage (UHV) charging setups central to today’s power networks. These installations run nonstop in demanding outdoor settings while protecting delicate high-power electronics that produce considerable heat.

In such conditions, the sheet metal enclosure does far more than hold components together. It serves as an active part of thermal control and a sturdy barrier against the elements. San Jun Hardware has devoted more than 14 years to refining precise sheet metal work so these systems deliver steady performance no matter where they stand.

Precision Fabrication: The Foundation of ESS Reliability

Top performance in ESS starts with tight dimensional control. Even a 0.1 mm shift can misalign parts, create hot spots, or cause the structure to give way over time.

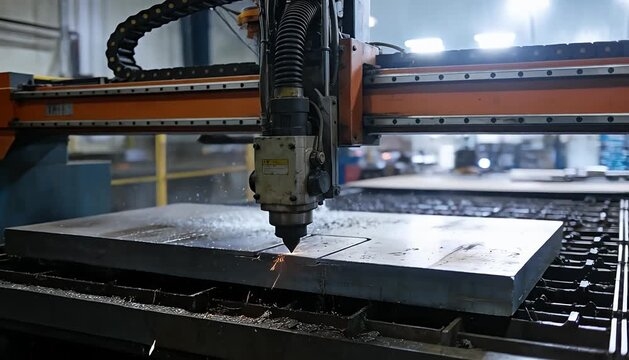

Ultra-High Precision Laser Cutting and Tolerances

Matériel San Jun relies on 4000W fiber laser cutters that hold positioning accuracy to ±0.05 mm. That degree of exactness matters greatly for several key features:

• Power Connector Slots: Rectangular openings for large connectors, such as 25 mm × 30 mm, line up exactly and remove strain during assembly.
• Clean Edges: The cut surface reaches a roughness of Ra ≤ 0.8 μm. Secondary grinding becomes unnecessary, which shortens assembly steps for customers around the world.

Advanced CNC Bending for Structural Load Stability

Battery modules carry substantial weight, so internal supports must resist bending without adding extra bulk. We use AMADA HG 1303 8-axis CNC press brakes that maintain a bend tolerance of ±0.1°.

• U-Shaped Ribs: Three-step bending creates U-shaped stiffeners in brackets. This approach raises load capacity by 40% while keeping the same material thickness.
• Dimensional Consistency: Springback often disrupts runs in volume production. Custom 3D-printed bending dies help us keep every piece in a 2,000-unit batch within close limits.

Material Science for Longevity: Beyond the Standard Enclosure

The service life of an ESS depends heavily on the right material choice. San Jun Hardware matches metals to the exact placement conditions.

Corrosion Resistance in Extreme Environments

Ordinary steel fails quickly in salty air or damp climates.

• 316 Stainless Steel: We select 1.5 mm 316 stainless steel. The added molybdenum improves salt-spray resistance by 50% over common 304 grades.
• Advanced Passivation: Nitric acid passivation builds a 5 μm oxide layer on each part. A UV-resistant powder coat then protects the finish from fading under strong sunlight in hot regions.

Lightweighting with High-Strength Alloys

Field installation goes smoother when parts weigh less. For many internal pieces, we turn to 6061-T6 aluminum alloy.

• Weight Reduction: This alloy weighs 30% to 35% less than carbon steel yet holds a tensile strength of 276 MPa.
• Thermal Benefits: Aluminum conducts heat well by nature. Battery module brackets made from it double as auxiliary heat spreaders for the cells.

Overcoming Engineering Hurdles in Thermal and Environmental Protection

Battery life hinges on keeping temperatures in check. San Jun Hardware applies airflow studies to shape enclosure designs that handle heat effectively.

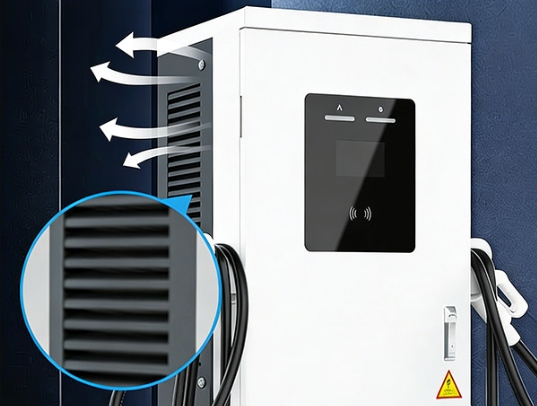

Scientific Heat Dissipation and Airflow Management

Simple round holes fall short in many cases. We form slanted louver channels instead.

• 30° Tilt Design: The angle blocks rain entry while letting air pass through freely.
• Matrix Arrays: Patterns of 6 mm or 8 mm holes keep internal temperatures from climbing past safe levels—usually 38–40°C—even when outside air reaches 45°C.

Achieving IP65 and Sealing Excellence

Enclosures like the Boîtier de machine intégré de terminal de libre-service IP65 depend on carefully formed “dead edges” paired with EPDM gaskets.

• Tight Gap Control: Door gaps average 0.25 mm. That narrow space stops dust and water yet allows smooth operation without sticking.
• Robotic Welding: A 1500W fiber laser creates weld seams under 1 mm wide. Narrow joints reduce heat distortion and preserve the flat surfaces needed for reliable IP-rated sealing.

San Jun Hardware: A Versatile Hub for Global OEM/ODM Solutions

Although ESS remains a core focus, our skills reach into other busy sectors. Lessons learned from medical devices and retail equipment strengthen our approach to energy projects.

Cross-Industry Expertise from Medical to Digital Signage

Our work covers a range of products:

• Hospital Self-Service Kiosk Enclosures: Designed to satisfy strict cleanliness and safety rules in healthcare settings.
• Outdoor Custom Digital Signage Shells: Built to stay visible and hold up through severe weather.
• Intelligent Self-service Cabinets: Vending units and smart lockers gain strong anti-theft and anti-tamper construction.

Flexible Production and Quality Assurance Systems

We follow a straightforward principle: clear client needs, steady quality, and adaptable schedules.

• Scalable Customization: A run of 1,500 seismic early-warning enclosures or 2,000 shared power bank cabinets stays uniform with tolerances within 0.15 mm.
• Rigorous Testing: Every batch undergoes full CMM inspection, 1500-hour salt spray exposure, and vibration checks up to 1.5 g amplitude.

Conclusion: Scaling Your New Energy Projects with Confidence

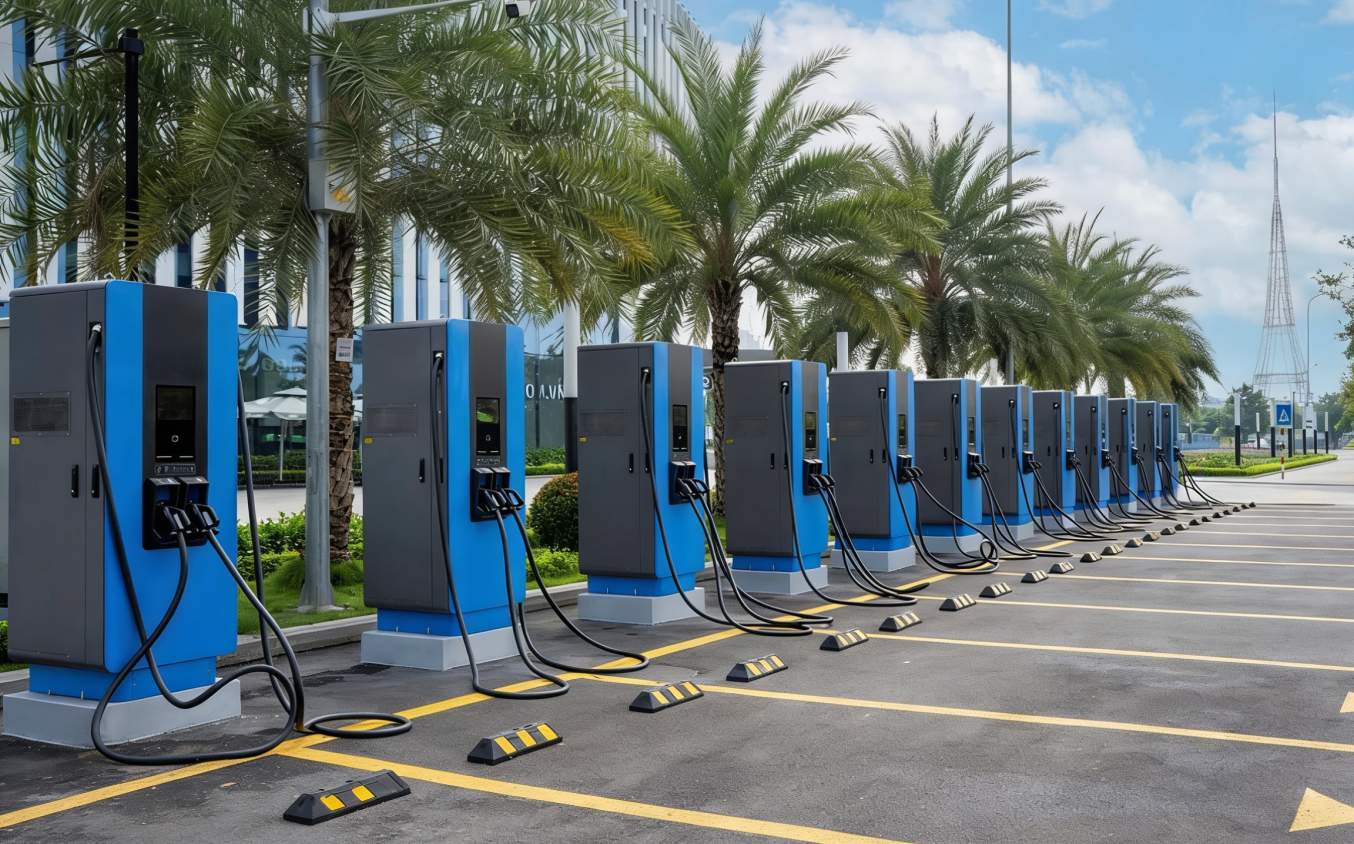

In the fast-growing fields of energy storage and electric vehicle support, the sheet metal partner you select shapes how long your equipment lasts. San Jun Hardware brings more than 14 years of practical knowledge together with a 5,000-square-meter shop dedicated to fine craftsmanship.

We provide complete OEM/ODM guidance and adhere to ISO 9001 standards. That combination delivers adaptable manufacturing and strong cost performance so your new designs reach customers sooner. Contact San Jun Hardware today to turn your drawings into dependable, high-performing products.

FAQ (questions fréquentes)

Q: What is the typical lead time for custom OEM sheet metal enclosures?

A: After design confirmation, samples are generally ready in 3-7 working days. For mass production, our typical lead time is 15 to 20 days, depending on order volume and complexity.

Q: Can you provide design support for manufacturability (DFM)?

A: Yes. Our team of 50 professional structural engineers provides DFM optimization to help you reduce costs, select the best materials, and improve structural stability before production begins.

Q: What surface treatments do you offer for outdoor or coastal environments?

A: We offer a range of treatments, including nitric acid passivation, anodizing, and UV-resistant powder coating. We can guarantee up to 1500 hours of salt spray resistance for harsh environments.

Q: Do you have a minimum order quantity (MOQ) for custom parts?

A: We are highly flexible. We support everything from small-batch prototypes to large-scale mass production of 2,000+ units, adjusting our processes to meet your specific budget and timeline.
