Master Sheet Metal Quotes: Save Costs with San Jun Hardware

In the B2B procurement world, nothing frustrates more than getting three very different quotes for the same technical drawings. For a procurement manager seeking custom sheet metal fabrication, the unclear pricing process can cause budget problems or, even worse, lower-quality choices.

Why might one vendor offer $50 per unit while another charges $80? The reason comes from a careful mix of material properties, engineering details, and worker productivity. As a top maker focused on precision sheet metal parts, 三骏五金 thinks clear pricing builds strong, lasting business ties. In this guide, we explain the main elements that shape your sheet metal quote. We also show ways to adjust your designs for better returns on investment.

The Material Factor: Choosing the Right Foundation

Raw materials usually make up the biggest part of the unit price in sheet metal fabrication. But it’s not only the price per kilogram. It’s also about how the material acts during the making process.

Material Selection for Performance

At San Jun Hardware, we often handle cold-rolled steel, stainless steel (SUS304/316), and aluminum.

• Display Enclosures: For indoor display shells, cold-rolled steel works well because of its good surface flatness and low cost.
• New Energy Solutions: For energy storage systems (ESS) or solar inverter housings, aluminum stands out for its heat release and light weight. However, it needs special welding methods that can raise labor expenses.

Nesting and Scrap Rates

A solid sheet metal quote includes “nesting efficiency.” If your part sizes lead to much waste on a standard 4×8-foot sheet, the price per part goes up. Our team at San Jun Hardware does DFM (Design for Manufacturing) checks to suggest small size changes. These can improve material use and often cut client costs by 5-10% on raw materials.

Design Complexity: Where Precision Meets Labor

A simple flat metal piece with four holes costs little. But a detailed, multi-sided custom metal enclosure with strict tolerances costs more.

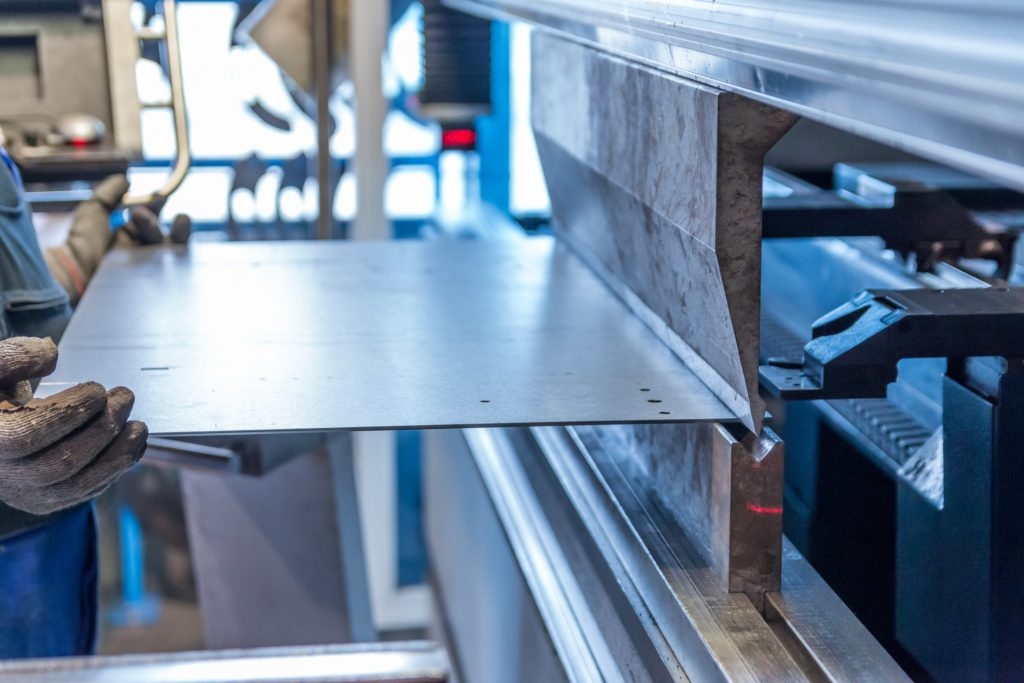

CNC Bending and Tooling

Every bend in a part needs a certain setup on a CNC press brake. If your design has various bend curves or inner “flanges” that are hard to access, it calls for custom tools or several machine setups. At San Jun Hardware, we use modern AMADA CNC bending machines for steady, high accuracy. Still, tricky shapes naturally take more worker time.

Welding and Assembly

Welding takes a lot of labor.

• Spot Welding: Quick and budget-friendly, perfect for inside brackets.
• TIG/MIG Welding: Needed for strong structure and smooth looks.

For premium items like our medical self-service kiosk enclosures, we use complete seam welding, then careful grinding and polishing. This makes joints unseen. Such a smooth finish adds worth but raises the OEM fabrication price a lot.

Surface Treatment: Aesthetics and Durability

The surface finish does more than improve appearance. It guards your product against weather and wear.

Indoor vs. Outdoor Applications

• Powder Coating: This serves as the usual choice for most display hardware and indoor cabinets. It gives a tough, scratch-proof layer in many RAL colors.

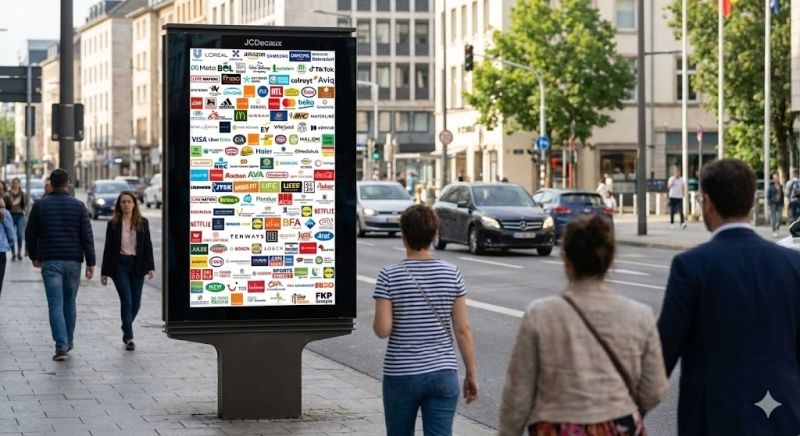

• IP65 Weatherproofing: For outside uses, like EV charging station housings or 户外数字标牌, the quote covers special treatments. These include zinc-based primers and strong outdoor powders to stop rust. San Jun Hardware makes sure all outdoor enclosures hit IP65 levels, keeping inside electronics safe from dust and water.

Case Study: Solving the “High-Cost” Prototype Issue

A client from the digital signage field came to San Jun Hardware with a plan for a heterogeneous display metal enclosure. Their old supplier’s quote ran 30% over budget because of the fancy curved style of the shell.

• The Problem: The first design needed costly custom molds for the curved parts.
• The Solution: Our engineers suggested a “segmented bending” method with our exact CNC tools, plus targeted grinding. This got the same smooth, curved style without pricey tools.
• The Result: The client cut their starting costs by $4,000 on tools and sped up lead time from 6 weeks to 15 days. By working on the sheet metal prototyping stage, we shifted the project to large production with a much lower unit price.

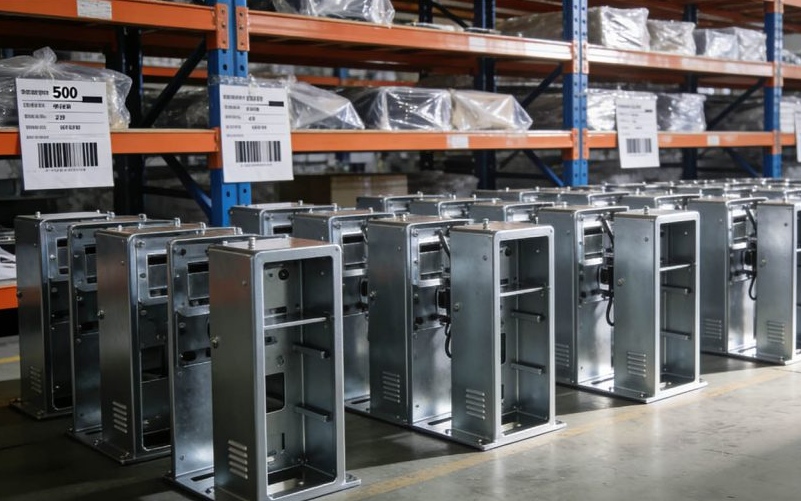

Logistics, Packaging, and Scale

Past the actual making of the part, production size and supply chain safety affect the final quote in key ways. A smart plan for order amounts and safe shipping keeps unit costs low. It also cuts risks from delivery issues.

Prototyping vs. Mass Production

Your order size offers the best way to lower prices.

• Low Volume: Unit prices stay high because of setup times like programming and tool changes.
• High Volume: San Jun Hardware gives big discounts for orders over 500 units. Set-up costs are spread out over more items this way.

Global-Ready Packaging

For B2B clients around the world, packaging matters a lot in the quote. We go beyond simple boxing. We design the packaging with strong wooden crates and PE foam guards. This way, precision sheet metal parts reach your site without any marks, avoiding extra costs from returns or damage.

Partnering for Success

Knowing the reasons behind a sheet metal quote helps you choose wisely between quality, use, and expense. At San Jun Hardware, we offer more than a price. We deliver a full making plan. If you build new energy storage cabinets or a fine new energy vehicle component, our group stands ready to improve your work from the initial sketch.

Ready to cut your project costs?

[立即联系三骏五金 for a full DFM review and a precise quote on your next project.]

常见问题解答

Q: Why does the choice of finish (like powder coating vs. anodizing) affect the price so significantly?

A: Finishing costs rely on the chemical steps, worker time for covering tricky spots, and batch amounts. Anodizing is often charged per batch, while powder coating changes with color switches and part areas.

Q: Can San Jun Hardware help reduce the cost of my existing design?

A: Yes. We provide DFM (Design for Manufacturing) checks to spot unneeded details, like too-tight tolerances or extra welds. These changes can drop unit prices without harming quality.

Q: What information do I need to provide for an accurate custom sheet metal quote?

A: We need 2D drawings (PDF/DXF) with sizes and 3D files (STEP/IGS) for shapes, plus material details, needed finish, and rough order numbers.

Q: How do you handle the price fluctuations of raw materials like stainless steel or aluminum?

A: Raw material prices shift quickly. Our quotes last 15-30 days. For ongoing deals, we team up with clients on “index-based” pricing to keep things fair as market prices move.
