Each pain point directly impacts F&B operations, customer perception, and regulatory compliance:
- High-Frequency Wear & Tear:
10,000+ daily user touches (oily hands, sharp utensils) cause 32% of standard kiosk panels to scratch within 3 months (2024 fast-food chain customer survey), leading to 18% of customers rating the brand “unprofessional” due to worn equipment.
- Food-Safe Hygiene Compliance:
Non-sealed sheet metal gaps (≥0.1mm) trap sauce splatters and crumbs, increasing cleaning time by 40% and raising the risk of failing health inspections (e.g., a U.S. coffee chain was penalized $1,200 per location for hygiene gaps in 2023).
- Brand Visual Uniformity:
Off-the-shelf kiosks’ limited color options result in 25% of chain locations having misaligned brand hues (Pantone deviation ≥5), weakening brand recognition.
- Space Adaptability:
Fast-food chains need 110–130cm height kiosks for all-age access, while bubble tea shops (average counter depth 50cm) cannot fit standard 60cm-depth units—wasting 20% of floor space.
- Precise Device Integration:
Misaligned touchscreen cutouts (tolerance >0.5mm) cause 30% of bulk deployments to delay launch by 5+ days, as technicians rework panels on-site.
- Vibration & Noise Disruption:
Receipt printer vibration transfers to sheet metal, creating 65dB noise (equivalent to a conversation) that reduces dining ambiance satisfaction by 15% (restaurant experience survey 2024).
We tailor designs to resolve F&B-specific challenges, with modular options for wall-mounted, floor-standing, countertop, and outdoor kiosks:
Designed to withstand 15,000+ daily interactions and food splatters:
- Antimicrobial Material & Coating Options:
- Fast-food/heavy-traffic venues: 1.2mm antimicrobial 304 stainless steel (JIS G 4305)—tested per JIS Z 2801-2010, it inhibits 99.2% of E. coli and S. aureus after 24-hour contact, even post 10,000-cycle scratch tests.
- Casual dining/brand-focused venues: SPCC cold-rolled steel with FDA-compliant antimicrobial matte powder coating (60μm thickness)—resists oil stains and requires 30% less cleaning time than glossy finishes.
- Hygiene-Optimized Structural Design:
- Seamless Laser-Welded Joints: Gaps ≤0.03mm (meets EU food hygiene standard EN 1672-2) to eliminate crumb/sauce traps; cleaning time per kiosk reduced from 5 minutes to 2 minutes.
- Rounded Edge & Splash Guard Integration: R3mm rounded edges prevent food buildup; custom-sized 0.8mm stainless steel splash guards (detachable via quick clips) shield touchscreens from 90% of beverage spills (tested with 50ml liquid splatters).
To unify chain identity across 100+ locations:
- Pantone-Calibrated Coating Precision:
Robotic powder coating with spectrophotometer validation (ΔE ≤1) to match brand Pantone colors—e.g., for a U.S. burger chain’s signature red (Pantone 485C), color retention reaches 98% after 2,000 hours of UV exposure (no fading in sunlit mall venues).
- Custom Brand Identity Integration:
- Laser-Etched Logos: 0.1mm-depth etched logos (replacing adhesive stickers) that resist scratching and remain intact for 5+ years.
- Aesthetic Frame Shaping: AMADA CNC-bent curved frames (e.g., 15° rounded top edges for a café chain) or angular panels (for a modern fast-casual brand) to mirror brand design language.
Tailored to F&B venue layouts:

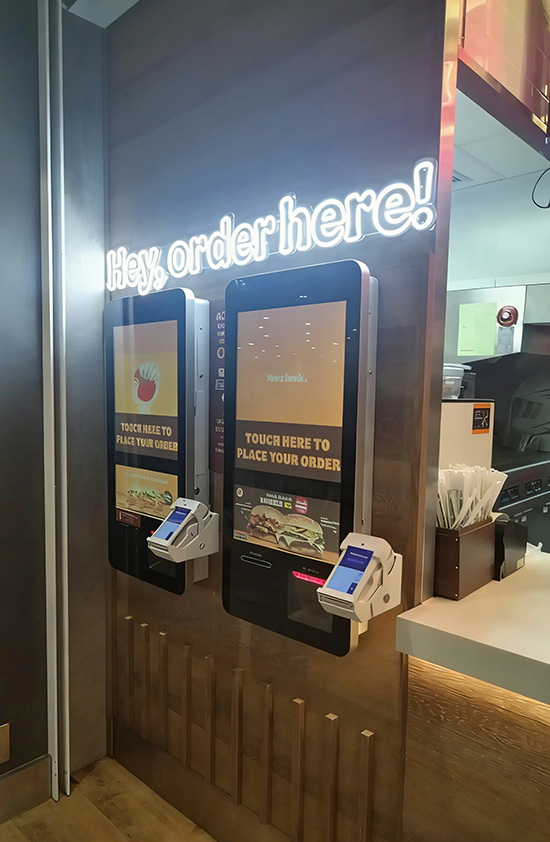

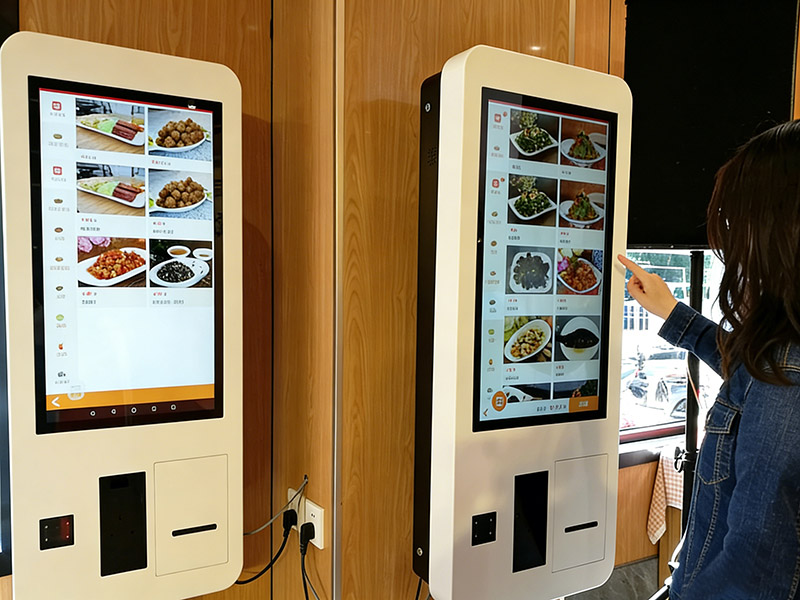

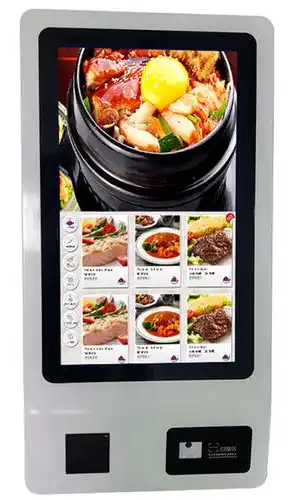

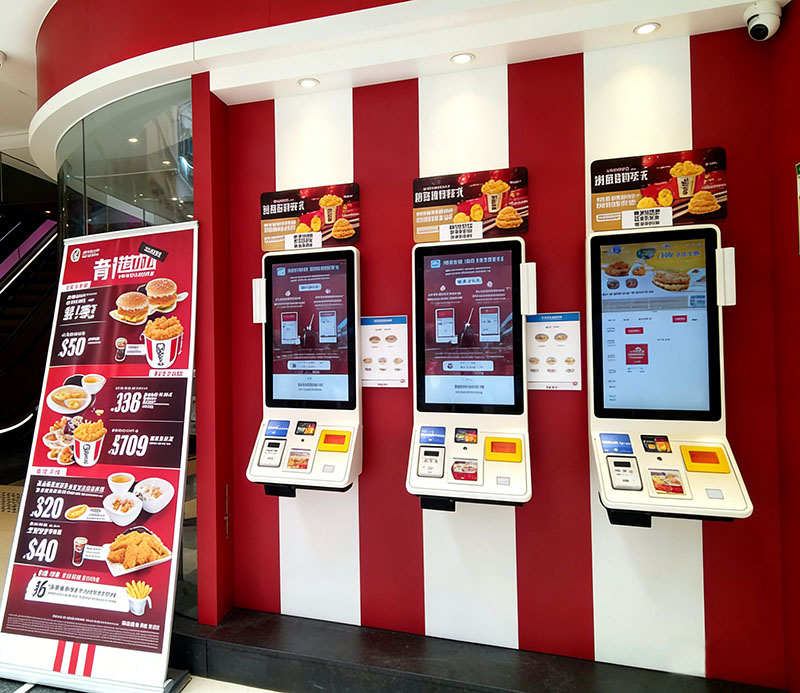

- Wall-Mounted Kiosks (Bubble Tea/Cafés):
1.0mm aluminum-magnesium alloy frames (weight ≤15kg) with reinforced hidden brackets—supports 25kg (21-inch touchscreen + payment terminal) while fitting 50cm-depth counters (saving 80% floor space vs. floor-standing units).

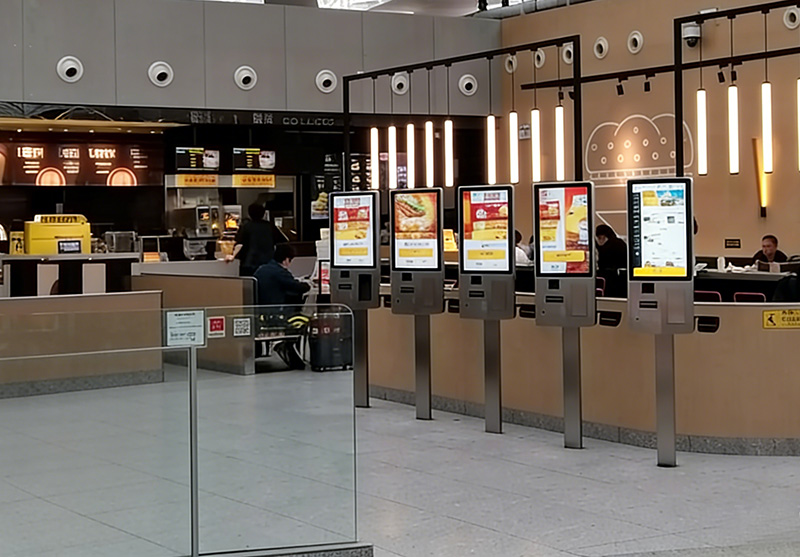

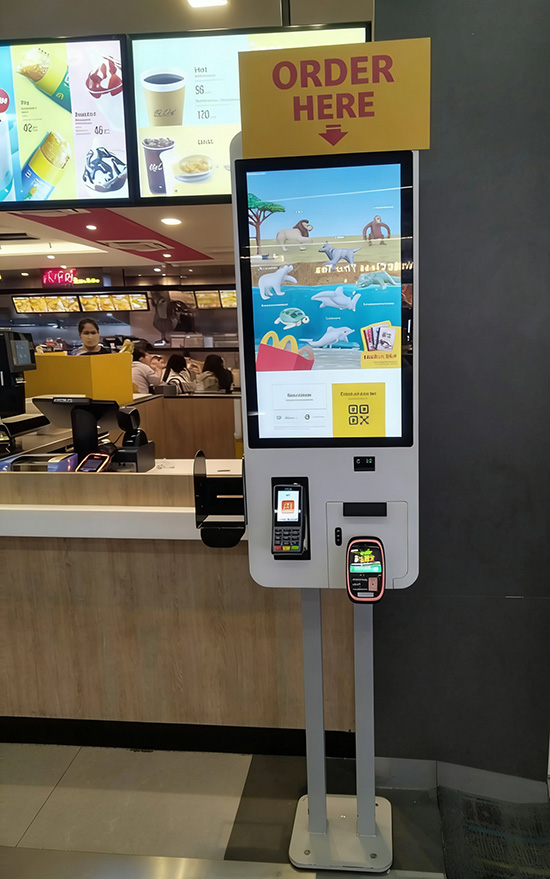

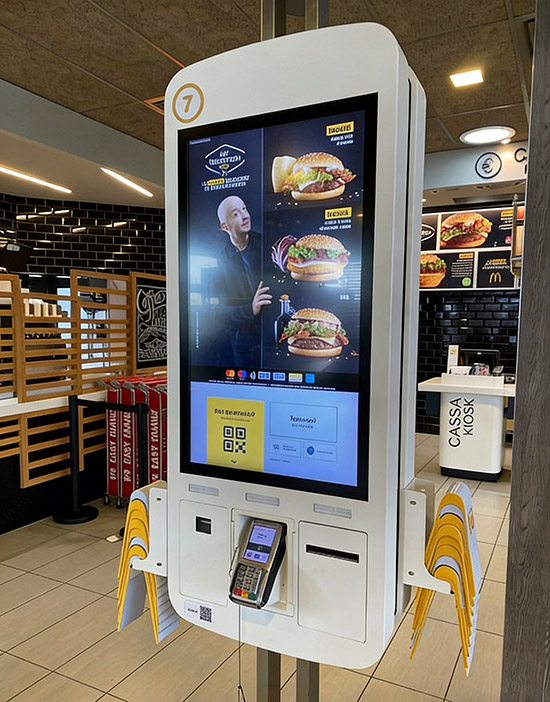

- Floor-Standing Kiosks (Fast-Food Chains):
1.5mm SPCC steel frames with height-adjustable bases (110–130cm) (accommodating 120cm-tall children to 190cm-tall adults); foldable receipt trays (tucking from 20cm to 5cm width) that reduce peak-hour aisle obstruction by 30%.
- Countertop Kiosks (Convenience Stores):
0.8mm stainless steel enclosures (depth ≤30cm) with non-slip silicone feet—fits over 40cm-depth checkout counters without blocking cash register access.
- Outdoor Kiosks (Street Food Stalls):
1.5mm 316 stainless steel frames (1,000-hour salt spray resistance) with IP54-sealed joints—resists 50℃ high temperatures and 95% humidity (compliant with IEC 60529).
To streamline deployment and enhance ambiance:
- Micron-Level Cutout Accuracy:
4000W fiber laser cutting (±0.05mm tolerance) for 15–21-inch touchscreens, payment terminals (e.g., Square Terminal: 150mm×80mm cutout), and thermal receipt printers—no light leakage or misalignment, cutting on-site installation time by 30% for 500-unit deployments.
- Vibration & Noise Damping:
- Printer Isolation Brackets: Custom sheet metal brackets with 10mm food-grade rubber pads—reduces printer vibration transfer by 80%, lowering kiosk noise from 65dB to 50dB (equivalent to a quiet office).
- Internal Sound Lining: 5mm food-safe foam lining (adhered to internal walls) that muffles device hum without trapping food debris.
To reduce long-term operational costs:
- Quick-Detach Panels:
Quick-release latches (no tools required) that allow staff to remove front panels in 2 minutes—simplifying cleaning of internal food splatters or device maintenance.
- Modular Component Mounts:
Pre-welded adjustable mounts for payment terminals/receipt printers—enabling easy upgrades (e.g., swapping magnetic stripe readers for NFC terminals) without reworking the entire sheet metal frame.
Our processes prioritize F&B safety, consistency, and scalability:
- F&B-Specific DFM Review:
Pre-production design reviews optimize for hygiene (e.g., avoiding horizontal surfaces that collect crumbs) and maintenance (e.g., panel removal angles ≥45° for easy access).
- Automated Precision Manufacturing:
- 4000W fiber laser cutters: ±0.05mm cutout tolerance for device integration.
- Robotic welding: 0.03mm seam gap accuracy for seamless hygiene structures.
- F&B-Targeted Testing:
- Antimicrobial Efficacy: JIS Z 2801-2010 (99.2% bacteria inhibition).
- Wear Resistance: 10,000-cycle scratch test (no visible damage).
- Hygiene Compliance: EN 1672-2 (seam gap ≤0.03mm).
- Outdoor Durability: IEC 60529 (IP54) + 1,000-hour salt spray test.
- Chain-Ready Packaging:
Branded protective film (to avoid coating scratches) + EPE foam (for device cutouts) + ISPM 15 crates—ensuring 0 cosmetic defects during cross-continental shipping for 1,000-unit orders.
- Client: U.S.-based burger chain (800+ locations in North America/Europe).
- Pain Points: 32% of panels scratched within 3 months; brand red coating faded by 15% in sunlit malls; 65dB printer noise reduced ambiance satisfaction.
- Sanjun’s Solutions: Antimicrobial 304 stainless steel panels; ΔE ≤1 Pantone 485C coating; vibration-isolated printer brackets.
- Outcomes:
- Scratch-related brand complaints dropped from 18% to 2%.
- Color retention reached 98% after 2 years.
- Dining area satisfaction scores rose by 12% post-noise reduction.
- Client: Taiwanese bubble tea chain (1,200+ locations in Southeast Asia).
- Pain Points: 50cm-depth counters couldn’t fit standard kiosks; milk tea splatters trapped in seams increased cleaning time by 40%.
- Sanjun’s Solutions: 1.0mm aluminum-magnesium wall-mounted frames; seamless 0.03mm gap structures; detachable splash guards.
- Outcomes:
- 60% more floor space (added 2 seats per 10㎡ store).
- Cleaning time per kiosk cut from 5 minutes to 2 minutes.
- Order processing speed increased by 33% (from 45s to 30s per order).
Q: Are the sheet metal materials safe for food-contact environments?
A: Yes—we use FDA 21 CFR 175.300-compliant antimicrobial 304 stainless steel and coatings, with JIS Z 2801 antimicrobial test reports provided for each batch.
Q: Can you design kiosks for outdoor street food stalls?
A: Absolutely—our 316 stainless steel frames with IP54 sealing resist 50℃ heat and 95% humidity, compliant with IEC 60529 for outdoor F&B use.
Q: What’s the lead time for 2,000-unit chain deployments?
A: Prototyping (10 units): 8–10 days; mass production + compliance testing: 22–26 days (including Pantone color validation and hygiene standard checks).
Q: How easy is it to replace a faulty payment terminal?
A: Our modular sheet metal mounts allow terminal swaps in 5 minutes (no tools required), reducing downtime vs. fixed-panel designs.
Sanjun’s custom sheet metal solutions transform F&B self-order kiosks into durable, brand-aligned, and hygiene-compliant assets that boost operational efficiency and customer satisfaction. Contact our team to share your venue’s specific needs and receive a tailored design proposal.
Would you like me to compile a F&B Self-Order Kiosk Sheet Metal Technical Spec Package (including material test reports, space-saving dimension templates, and brand alignment checklists) to support your chain-wide deployment planning?
