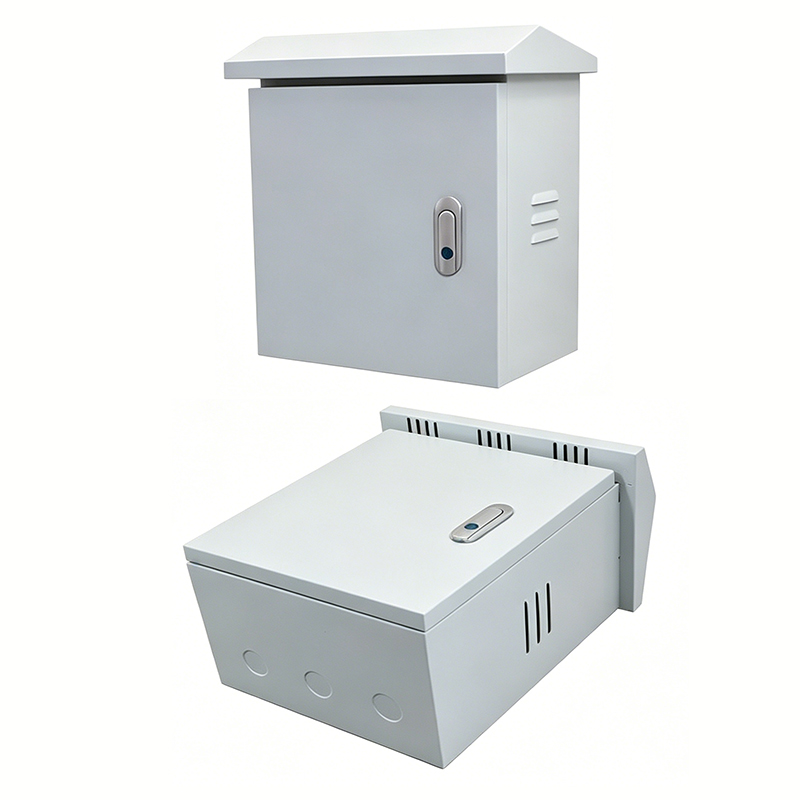

Our outdoor waterproof monitoring enclosures (also named security equipment cabinets, exterior distribution boxes) are tailor-made metal protective housings engineered for outdoor surveillance, network wiring and weak-current power distribution scenarios.
These enclosures shield internal power adapters, network switches, wiring terminals, surveillance accessories and circuit components from rainwater intrusion, dust, UV aging, moisture and vandalism. Widely deployed for road traffic monitoring, residential community security, factory perimeter defense, hydraulic data collection, solar power stations and outdoor communication wiring projects.
Solved Thin Plate Bending Deformation & Uneven Door Seam Defect
Thin-gauge sheet metal cabinets tend to warp after CNC bending, resulting in inconsistent door gaps and poor closing tightness. We adopt springback compensation molds + multi-point positioning forming technology, strictly control cabinet flatness and straightness, and keep door-box gap uniform within tight tolerance, laying a solid foundation for stable waterproof performance.
Fixed Sealing Groove Mismatch & Water Leakage Risk for Outdoor Application
Ordinary cutting & assembly deviation will damage IP rating and cause rain penetration. We use high-precision laser blanking + post-weld grinding finishing process, matched with customized silicone sealing grooves, ensuring reliable IP54 / IP65 long-term waterproof performance even under harsh outdoor wind and rain exposure.
Eliminated Pole Mount Hole Position Deviation for On-site Installation

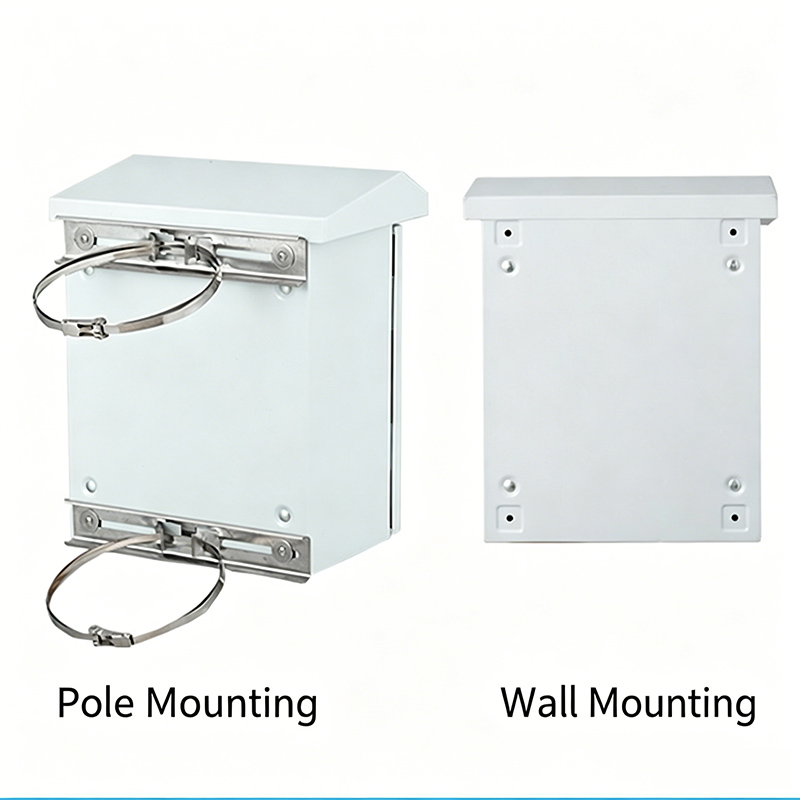

Pre-drilled bracket mounting holes often have pitch errors, leading to secondary drilling during pole installation. We adopt integrated one-time punching tooling to guarantee consistent hole spacing, enabling fast assembly on round poles and square poles without field modification.
Optimized Surface Coating to Solve Short Outdoor Anti-rust Lifespan
Conventional spray coating easily peels and rusts after long-term sun & rain erosion. Our full pre-treatment process (degreasing + phosphating) plus uniform electrostatic powder coating improves coverage on welding seams and sharp edges, delivering superior salt spray resistance and extending outdoor service life over 10 years.
In-house Full-process Sheet Metal Production
Fully independent production line: Laser cutting, CNC bending, argon arc welding, grinding, tapping, sealing groove machining, powder coating, assembly. No outsourced procedures, better cost control, shorter lead time and full production traceability for bulk orders.
Rich Experience in Security Enclosure Structural Customization
Deep know-how in outdoor waterproof cabinet structural design, pole-mounted installation structure and internal wiring layout. We can provide professional DFM design optimization proposals to lower your on-site assembly difficulty and after-sales failure rate.
Strict Batch Consistency Quality Control System
Implement first article inspection, in-process dimensional inspection, finished product waterproof sealing sampling test for every order, effectively avoid dimensional fluctuation in mass production, stable long-term bulk supply for large-scale security engineering projects.
Flexible OEM & ODM Customization Service
Customizable material: SPCC cold rolled steel, SGCC galvanized steel, stainless steel, aluminum alloy; customizable overall dimension, door lock structure, pole/wall mounting mode, internal divider layout, cable entry holes, IP waterproof grade and surface finish; laser engraved brand logo and customized export packaging available.
