Fundo do Projeto
With the rapid expansion of smart office and digital signage systems, a leading multimedia equipment manufacturer launched a targeted customization project in 2026 for multimedia panel enclosures. These enclosures are critical for protecting internal control modules, interface ports, and electronic components, requiring stable performance in both commercial and office environments.
Os requisitos chave incluíram:
- IP54 polvere e resistência à água
- Tolerança dimensional ≤±0,03mm
- Disipação eficiente de calor para operação contínua

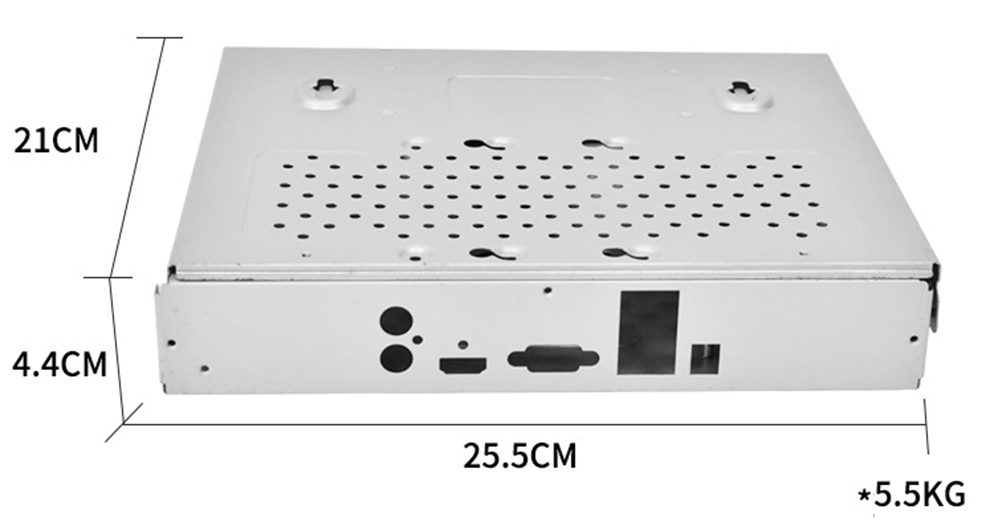

- Slim, lightweight design for wall-mounted installations
- Compatibility with standard interface ports (HDMI, USB, power)
- Qualidade estável da produção de lotes
- Durable, corrosion-resistant surface finishes for long-term use
Sanjun Hardware was selected for its precision sheet metal technology, professional interface design capabilities, and proven track record in industrial multimedia enclosure customization.
Processo de Fabricação de Componentes Principais

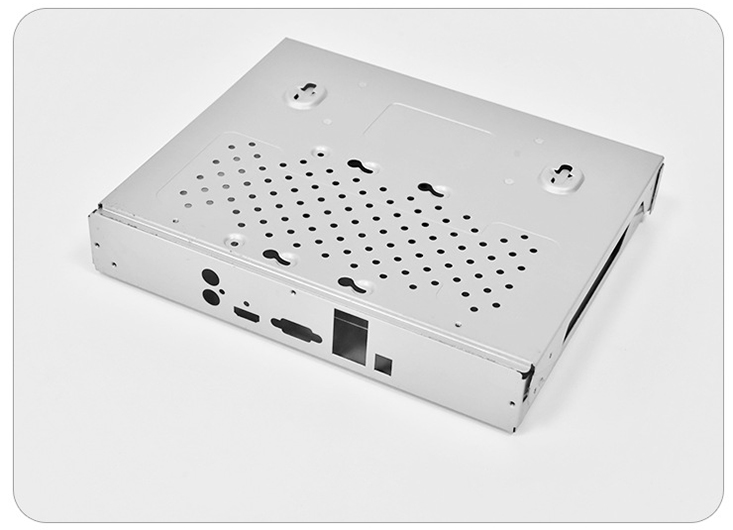

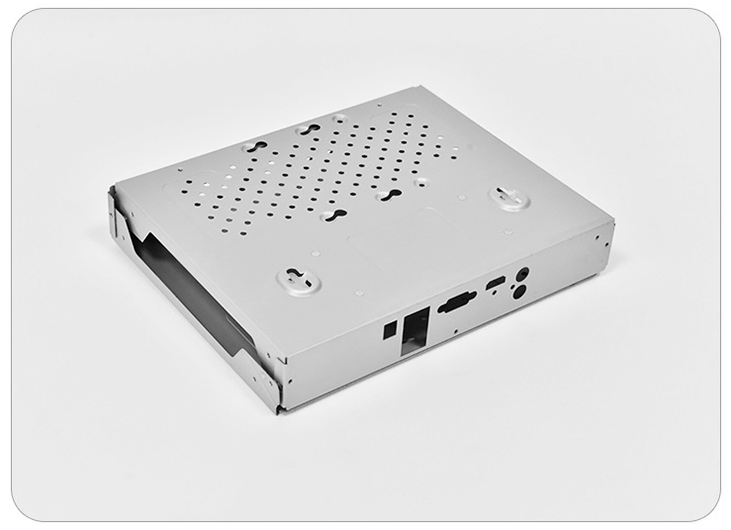

The multimedia panel enclosure consists of the main enclosure, top ventilation cover, front interface panel, and mounting brackets. All production follows ISO 9001 quality standards and industrial multimedia enclosure specifications.
1. Seleção de materiais e Pretratamento
- Main enclosure & painéis: folha de aço galvanizado laminado a frio de 1,0 mm, proporcionando alta força estrutural e resistência básica à corrosão.
- Pré-tratamento: Graduação ultrasônica completamente automatizada, derusting e fosfatização para criar uma base de superfície limpa e de alta adesão ideal para revestimento de pó eletroestático.
2. Manufactura principal de artesanato
- Precision Laser Cutting: 8000W fiber laser cutter with ±0.02mm tolerance, using nitrogen assist gas to minimize heat distortion and maintain material integrity. This ensures accurate cuts for ventilation holes, interface port cutouts, and mounting slots.

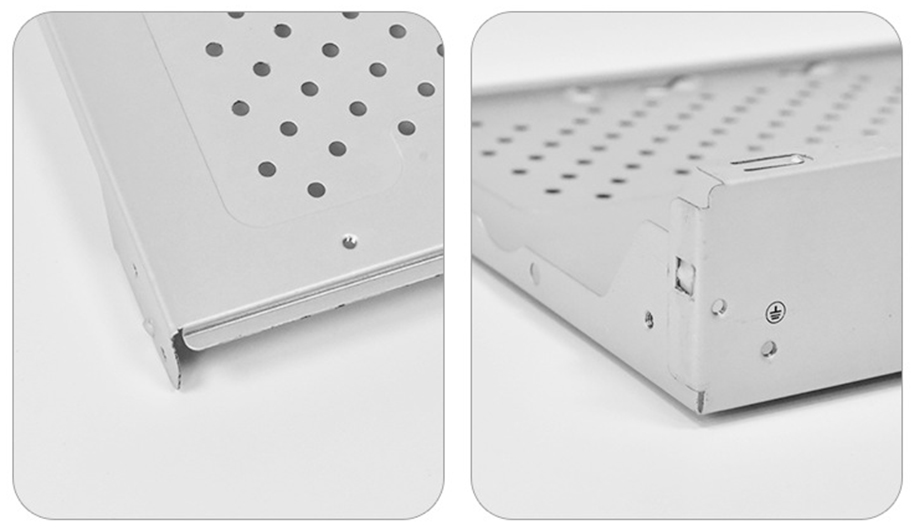

- CNC Bending & Forming: 9-axis CNC bending machine with custom jigs, ensuring springback ≤0.02mm and consistent structural dimensions. This is critical for the precise alignment of interface ports and the tight fit of the enclosure.

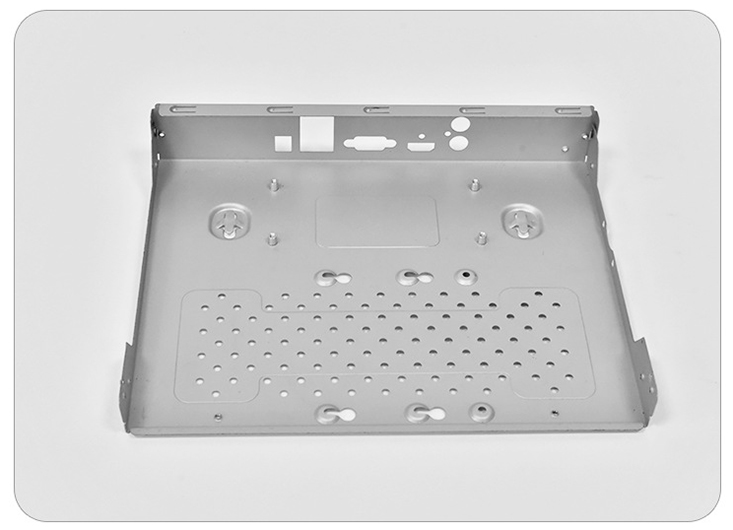

- Precision Hole Processing: Laser positioning and CNC punching technology are used to ensure the accuracy of interface port openings, mounting holes, and ventilation slots within ±0.01mm. This guarantees seamless integration with standard HDMI, USB, and power connectors.

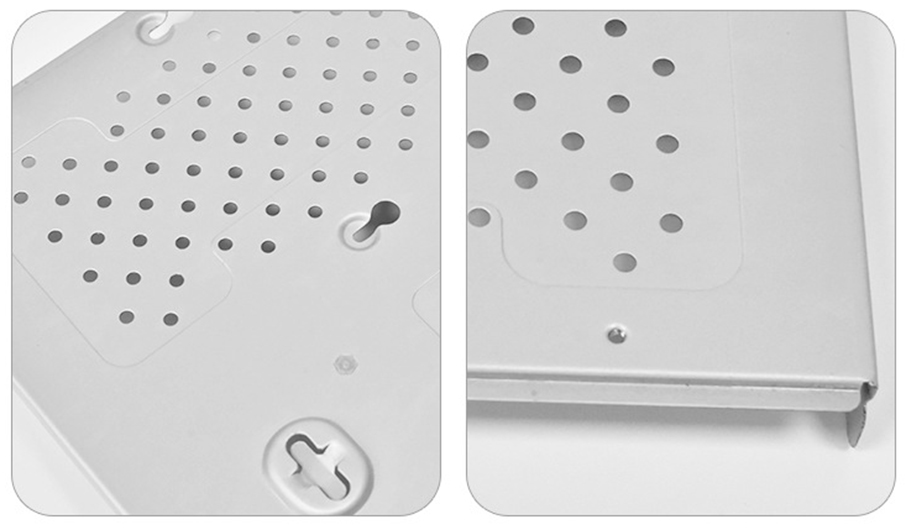

- Heat Dissipation Structure: Precision-punched ventilation holes on the top and side panels, designed to optimize airflow and maintain optimal operating temperatures for internal multimedia components.
- Coating Electrostatic Powder

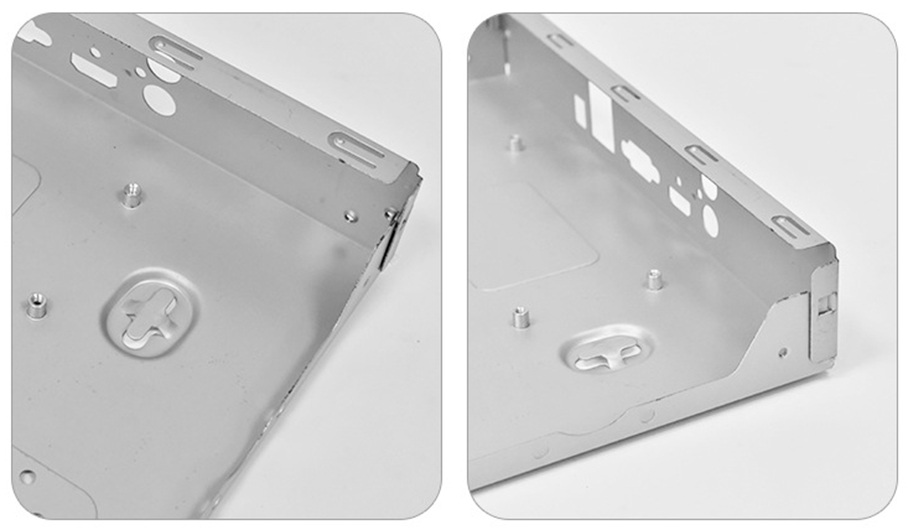

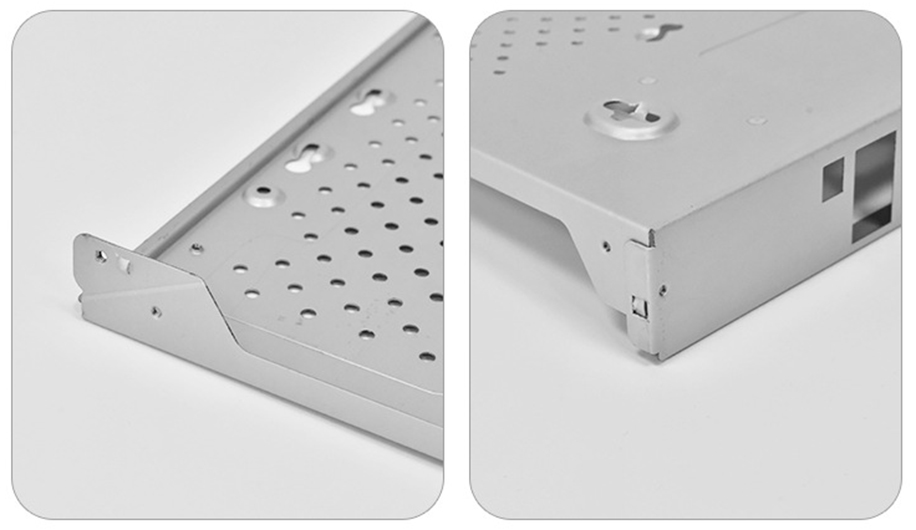

- Assembly & Sealing: High-density foam gaskets embedded in the enclosure seams to ensure a tight seal. Reinforced mounting brackets with precision holes are integrated into the enclosure for secure wall installation, while snap-fit locking tabs enable quick and reliable assembly of internal components.
3. Controlo de qualidade e Testando
- Dimensional inspection: CMM measurement to confirm tolerance ≤±0.03mm and compatibility with standard interface ports.
- Teste de proteção IP54: Teste de resistência à poeira e água por padrões IEC 60529.
- Teste de dissipação de calor: imagem térmica para verificar fluxo de ar eficiente e controle de temperatura sob carga completa.
- Interface fit test: Assembly testing with the client’s multimedia connectors to ensure seamless fit and signal integrity.
- Inspecção funcional completa: 100% inspecção antes da entrega para zero defeitos.
Projetos desafios & Soluções
1. Challenge: Precision Alignment of Multi-Interface Ports

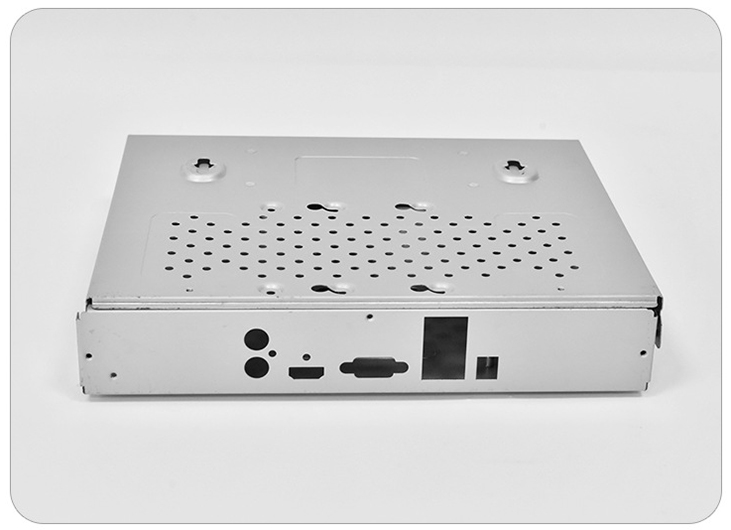

The multimedia panel features a complex front panel with multiple interface ports (HDMI, USB, power), requiring extremely high precision to ensure seamless component integration and signal integrity.
Solução: We used a combination of laser cutting and CNC punching with real-time positioning feedback. Pre-production sample assembly was conducted with the client’s hardware to verify fit before mass production, ensuring all ports aligned perfectly.
2. Challenge: Slim Design with Structural Integrity
The enclosure must be slim for wall-mounted installations, yet strong enough to support heavy internal multimedia modules and withstand mechanical shock.
Solução: Through finite element analysis (FEA), we optimized the internal structure with lightweight reinforcing ribs, improving structural strength by 20% without increasing the overall thickness.
3. Desafio: alta coerência na personalização em pequenos lotes
The customer required 800 units with uniform appearance, size, and performance across all units.
Solução: Linhas de produção automáticas e Controlo do Processo Estatístico (SPC) são usadas para monitorar parâmetros de processamento em tempo real. - A inspecção de amostragem é realizada por 25 unidades para assegurar a estabilidade do tamanho, final da superfície e desempenho funcional.
4. Challenge: Compatibility with Standard Multimedia Components
The enclosure must seamlessly accommodate standard multimedia modules and interface components.
Solução: We used laser positioning technology to ensure the accuracy of mounting rails and component slots within ±0.01mm. Pre-production sample assembly was conducted with the client’s hardware to verify compatibility before mass production.
Resultados do Projeto
- Delivery: 800 units completed and delivered 4 days ahead of the 30-day schedule, with a 100% pass rate in all tests.
- Performance: Enclosures operate stably in both commercial and office environments, with no overheating, dust accumulation, or structural issues reported. The slim, lightweight design has improved installation flexibility and user experience for end-users.
- Partnership: The client signed a 2-year strategic cooperation agreement, appointing Sanjun Hardware as the exclusive sheet metal enclosure supplier for its full line of multimedia panel products.
