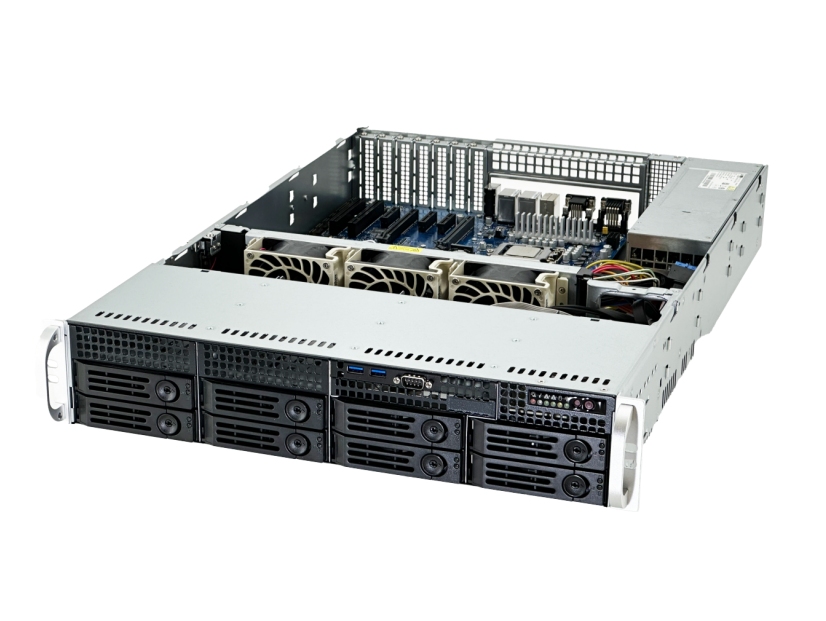

2U Server Thermal Optimization: High-Density Chassis Design

The High-Density Cooling Challenge

As cloud infrastructure and artificial intelligence deployment accelerate globally, data centers are pushing thermal boundaries to their absolute physical limits. To maximize computing performance per square foot, engineering teams heavily rely on compact architectures that pack multi-core CPUs and dense storage into restricted dimensions. Navigating these spatial boundaries requires an innovative approach to structural thermal management and advanced thermal optimization to keep enterprise components running without throttling.

Overcoming the 3.5-Inch Height Barrier

Achieving effective high-density server chassis performance means confronting a rigid spatial limit: a vertical height restriction of exactly 3.5 inches. Within this thin boundary, structural engineers must pack high-wattage power supplies, memory modules, expansion cards, and cabling arrays. As a leading custom 2U rackmount chassis manufacturer, SanJun Hardware designs and builds specialized server enclosures that turn these severe spatial constraints into highly optimized pathways for continuous heat dissipation. Our engineering methodologies ensure that every custom 2U rackmount chassis design delivers reliable, long-term performance under demanding enterprise computing loads.

Aerodynamic Bottlenecks in Modern 2U Server Architectures

Designing an effective, high-performance rackmount chassis design requires a granular understanding of how air behaves when forced through highly confined, metallic pathways. Without precise structural planning, traditional server cooling solutions fail under heavy computing loads.

Component Blockage and Static Pressure Dilemmas

When packing multiple enterprise components into a confined layout, physical parts naturally act as blockages that disrupt linear air paths and undermine comprehensive thermal management.

• Front-Loading Drive Arrays: High-density storage configurations at the front intake block initial incoming air, creating high resistance and decreasing flow velocity.
• Increased Component Density: Densely packed memory banks and tall heatsinks create internal friction, forcing intake fans to work against elevated static pressure.
• Thermal Management Constraints: Standard setups fail to deliver sufficient cold air to secondary components when front-intake pressure drops too low, demanding specialized server cooling solutions.

Vortex Formation and Internal Thermal Recirculation

Improperly structured internal open spaces allow air to escape into unwanted paths, significantly reducing overall server cooling solutions efficiency and disrupting targeted airflow optimization.

• Low-Resistance Escape Paths: Air naturally follows paths of least resistance, frequently bypassing hot component surfaces through open side gaps rather than following the intended airflow optimization path.
• Vortex and Dead-Zone Accumulation: Gaps around components create localized low-pressure pockets where hot exhaust air spins in cycles instead of exiting.
• Thermal Recirculation Risks: Left unchecked, this lingering trapped heat rapidly raises ambient internal temperatures, leading to component degradation and sudden system throttling, proving that passive layouts cannot replace dedicated thermal optimization.

Precision Sheet Metal Engineered Paths for Airflow Optimization

Addressing these technical friction points requires moving past basic passive venting toward custom-engineered sheet metal fabrication that controls internal fluid dynamics to optimize the entire 2U rackmount chassis design.

Advanced Air Duct Partitioning and Internal Shrouds

Isolating and controlling internal air travel is the most dependable way to secure consistent, high-efficiency thermal management inside a high-density server chassis.

• Precision Internal Air Shrouds: We utilize our advanced CNC press brakes to form precise internal sheet metal dividers that block air from wandering into low-resistance paths.
• Targeted Cold Air Delivery: These custom-shaped metal paths lock air into tight, isolated channels, forcing fresh intake streams directly across high-heat CPU heatsinks and GPU arrays for maximum thermal optimization.
• Structural Rigidity Integrity: Beyond managing airflow optimization, these internal partitions are mechanically anchored to reinforce the overall chassis body against twisting forces during rack slide deployment.

Strategic Louvre Punching and Hexagonal Perforation Patterns

Optimizing the ratio of open ventilation areas while controlling electromagnetic interference is a delicate structural balance in any premium rackmount chassis design.

• Hexagonal Hole Arrays: Our high-speed AMADA and Tailife CNC punch presses pierce high-density hexagonal perforation patterns that achieve up to an 85% open ventilation area, drastically enhancing airflow optimization.
• Advanced Louvre Punching: For harsh environments requiring an industrial rackmount chassis manufacturer, where dust entry or falling debris is a hazard, we implement precise angled louvre structures.
• Optimized Static Air Pressure: These specialized angled louvre steps maintain excellent directional airflow while acting as physical barriers that shield delicate internal boards from external particles.

SanJun Hardware: Your Strategic Partner for Custom Enclosure Solutions

Overcoming extreme thermal challenges requires combining robust digital engineering simulations with proven, high-tier metal fabrication capabilities.

Enterprise OEM/ODM Capabilities and End-to-End Assembly

We support global technology firms by providing comprehensive manufacturing services that translate complex blueprint designs into high-performance industrial hardware.

• Comprehensive Custom Manufacturing: Operating as an experienced OEM server chassis supplier, our capabilities extend from initial design-for-manufacturing (DFM) engineering checks down to full mechanical assembly.
• Rigorous Structural Tolerances: As an established industrial rackmount chassis manufacturer, we construct our Network Device Chassis and Telecom Communication Cabinets with tight tolerances down to ±0.05mm, ensuring internal component alignment and clean server rail integration.
• Diverse Industrial Solutions: From durable High/Low Voltage Distribution Cabinets to complex custom server enclosure solutions, our factory delivers complete surface finishing, localized hardware riveting, and full structural validation to support international data infrastructure.

Accelerate Your Next Deployment

Don’t let thermal bottlenecks limit your computing performance. Partner with SanJun Hardware, a trusted custom 2U rackmount chassis manufacturer, to design and manufacture a precision, high-density 2U rackmount chassis built exactly to your thermal and structural specifications.

Contact Our Engineering Team Today at liameranne@gmail.com to Receive a Comprehensive Technical Quote within 24 Hours!

FAQ

Q: Why are hexagonal perforation patterns preferred over circular holes for 2U server chassis ventilation?

A: Hexagonal patterns maximize the total open ventilation area per square inch compared to standard circular holes. This structural layout minimizes resistance to air travel, facilitating superior airflow optimization while maintaining excellent structural rigidity and required electromagnetic shielding.

Q: How do custom internal sheet metal shrouds improve server cooling solutions efficiency?

A: Custom internal shrouds eliminate open air gaps that cause bypass streams. By mechanically creating isolated air channels, fresh intake air is forced directly across critical hot components rather than escaping through areas of low resistance, yielding elite thermal optimization results.

Q: What manufacturing measures prevent chassis twisting when a 2U server is fully loaded with dense hardware?

A: As an experienced OEM server chassis supplier, we integrate internal structural reinforcement ribs, localized corner gussets, and strategically placed air duct partitions. These elements work together to increase torsional resistance, keeping the frame of the high-density server chassis perfectly aligned on sliding rack rails.

Q: How does a louvre layout affect static pressure compared to direct open mesh venting?

A: Louvres introduce a minor directional change that slightly alters static intake resistance, but they provide critical protection against airborne particles and liquid drips. They are ideal for harsh environments handled by an industrial rackmount chassis manufacturer where component shielding and reliable thermal management are prioritized over basic open layouts.
