As EV charging networks expand, field installation costs—such as complex wiring and long assembly times—are cutting into project margins. True efficiency requires more than just high-quality components; it demands a shift toward smarter structural design.
Applying Design for Manufacturing early in engineering helps companies simplify on-site installation. It also lowers the total cost of ownership. San Jun Hardware has specialized in sheet metal fabrication since 2010. They focus on OEM solutions for energy storage, BESS, and EV charging equipment. Laser cutting, CNC bending, and precision assembly turn complex layouts into easy-to-install enclosures.
Structural Design Optimization for Streamlined Cable Management
An optimized internal chassis layout is the foundation of rapid on-site installation, eliminating human error and cutting down manual wiring hours significantly. When technicians have to wrestle with high-gauge copper cables in a restricted space, installation times skyrocket.
Integrated Mounting Solutions and Pre-installed Studs
- Eliminating Secondary Brackets: Traditional designs rely on multiple loose internal brackets to secure heavy sub-assemblies. Through advanced DFM, San Jun Hardware consolidates these into a single-piece punched internal chassis.
- Automated Hardware Insertion: Utilizing high-speed automatic riveters (such as American Hager systems), we pre-install heavy-duty self-clinching studs, nuts, and standoffs directly into the AC and DC charging pile enclosures.
- On-Site Benefit: Field installers do not need to fumble with loose nuts or loose structural parts behind panels; they simply slide electrical modules onto pre-aligned, high-precision studs and torque them down immediately.
Dedicated Routing Pathways and Bend Radius Compliance

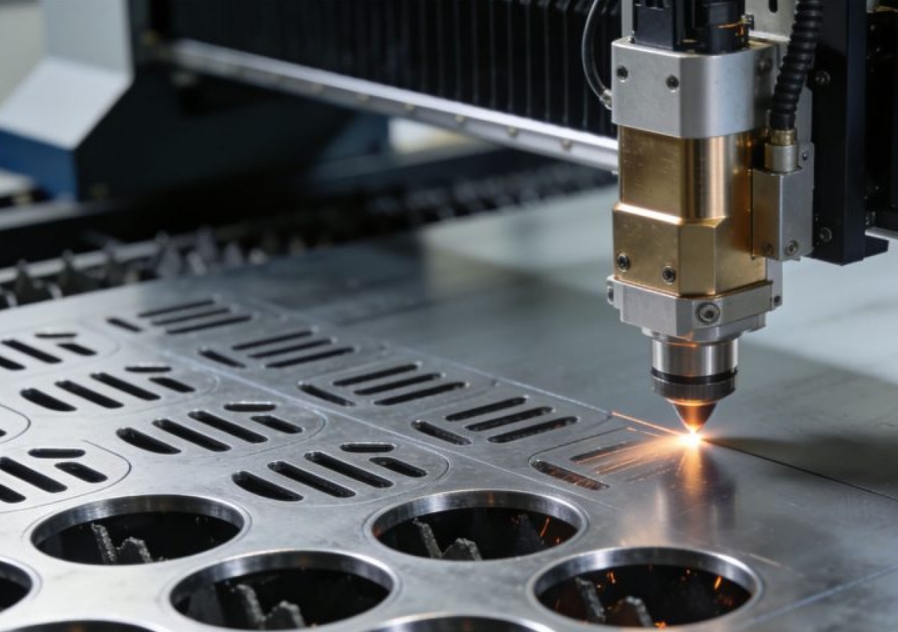

- Engineered Cable Guides: Heavy-duty DC fast chargers carry massive currents, requiring thick, rigid power cables. Our custom structural parts feature integrated, laser-cut cable management paths and built-in tie-down loops.
- Enforcing Safety Standards: Sharp metal edges pose an immediate threat of wire insulation abrasion. Our CNC press brakes create smooth, rolled edges and hemmed flanges along all wire routing pathways to maintain the required bend radius for high-voltage cables.
- On-Site Benefit: Electricians can pull and secure wires seamlessly along predictable, safe paths, avoiding expensive shorts and saving over 30% of standard field wiring layout time.

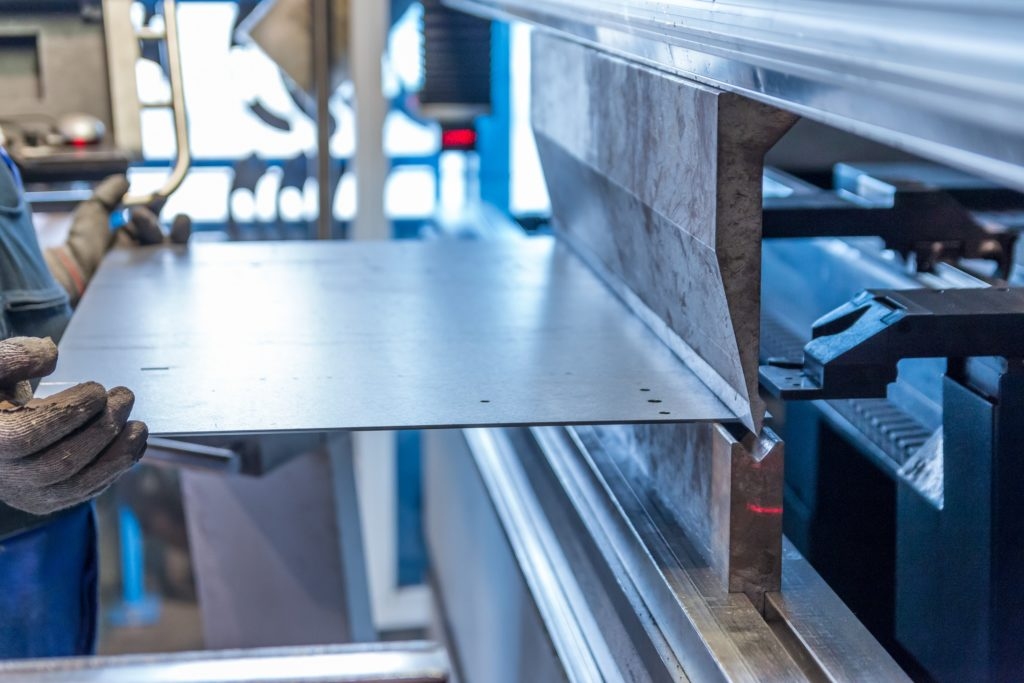

Advanced DFM Strategies to Lower Total Cost of Ownership (TCO)
Applying DFM guidelines early in the sheet metal fabrication process prevents downstream assembly issues and cuts production overhead. It ensures that every fold, notch, and punch adds value to the installation crew.
Component Consolidation and Smart Bending
- Reducing Weld Seams: Excessive welding leads to thermal distortion, which throws off structural dimensions and alignment hole positions. By maximizing multi-axis CNC bending on precision machines, we form complex enclosures from fewer individual sheet metal parts.
- Precision Tooling Utilization: Utilizing advanced Pradi machining centers and AMADA CNC punch presses, we achieve absolute hole-to-hole dimension accuracy across mass production.
- On-Site Benefit: A dimensionally perfect shell guarantees that outdoor foundational anchor bolts drop into place without on-site grinding, modifications, or structural forcing.
High-Tolerance Hardware Insertion and Self-Clinching Fasteners
- Consistent Grounding Points: Grounding continuity is vital for high-voltage EV infrastructure safety. Our manufacturing process inserts dedicated copper-plated or stainless steel grounding studs during the fabrication phase.
- On-Site Benefit: Field crews can establish reliable, certified electrical grounds in seconds without scraping powder coating or prepping surfaces manually.

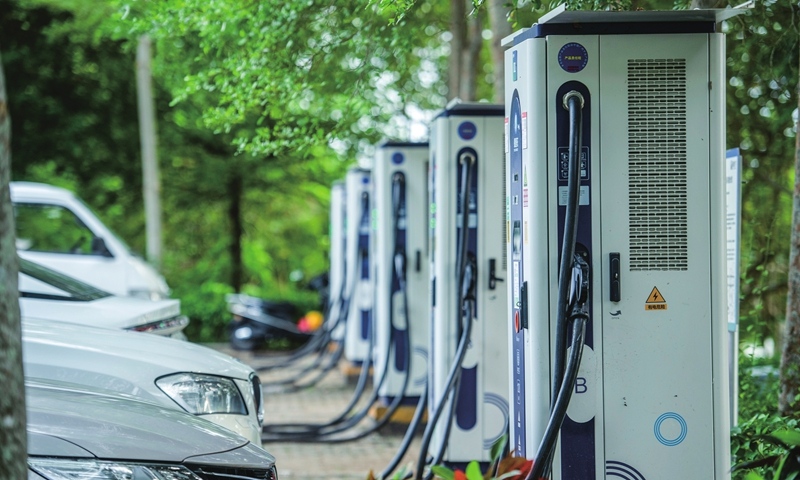

Accelerating Field Deployment in Commercial EV Environments
Real-world charging infrastructures require rugged, plug-and-play enclosures engineered for quick physical and electrical installation. Enclosures must withstand environmental elements while remaining highly accessible for maintenance crews.
Thermal Management and Modular Internal Frameworks
- Scenario-Specific Cooling: In high-power DC fast-charging stations, thermal loads build up rapidly. San Jun Hardware engineers custom enclosures featuring optimized honeycomb ventilation patterns and dedicated duct mountings.
- Modular Sub-Chassis System: We construct separate internal sub-racks for the power modules. These frames can be wired comfortably on an assembly bench rather than deep inside a cramped cabinet shell.
- On-Site Benefit: Technicians can perform rapid swap-outs or modular upgrades during commissioning, reducing field downtime from hours to minutes.
Environmental Sealing and Rapid Field-Access Entry
- Certified Protection: For public outdoor municipal deployments, our enclosures are engineered to meet strict IP65 and IP66 water and dust protection standards, complete with specialized gasket grooves.
- Ergonomic Door Access: Heavy-duty dual-layer front and rear access doors feature high-quality industrial hinges and smooth multi-point locking systems.
- On-Site Benefit: Field engineers gain instant, unrestricted access to electrical connection terminals, eliminating awkward working angles and accelerating final compliance checks.
Conclusion
Field installation gets simpler when sheet metal designs follow DFM right from the fabrication floor. This approach cuts material waste, reduces site fixes, and speeds up your time to market.
Partner with an experienced manufacturer that understands the intersection of precision metalwork and electrical efficiency. Contact San Jun Hardware today to submit your engineering drawings (2D/3D) for an integrated DFM review, or email liameranne@gmail.com to request a customized quote for your EV charger or energy storage enclosure projects.
FAQ
Q: What effect does material selection have on the trade-off between EV charger structure strength and cost?
A: Cold-rolled steel with top-of-the-line outdoor powder coat offers great structural stability at reduced base prices for standard chargers. In highly corrosive coastal or industrial settings, aluminum, such as 5052, or stainless steel, including 304 or 316, is recommended; although their prices are higher, they avoid future maintenance costs.
Q: Why is the hole position tolerance very important in custom DC charging station enclosures when installed in the field?
A: The DC fast chargers use power modules with high weight that are aligned with the bus bars inside. If the hole position tolerance in the sheet metal exceeds ±0.1mm because of poor quality production, the alignment becomes faulty, and field technicians need to drill new holes or tighten connections, creating serious electrical hazards.
Q: What are the most effective DFM characteristics in preventing on-site wiring mistakes for multi-charger commercial systems?
A: Color-coded internal divider plates, laser markings of terminal positions directly on the sheet metal, and pre-cut knockouts for standardized conduit fittings are among the most effective characteristics that will ensure correct wiring on-site without any mistakes.
Q: How do IP65/66 protection ratings affect the design of sheet metal joints and bend angles?
A: High IP rating means that there should be no seams and joints – only continuous welded metal or special foam channels for creating a gasket. Therefore, it is necessary to use an appropriate DFM approach that provides accurate bend allowance and tight corner tolerance.
