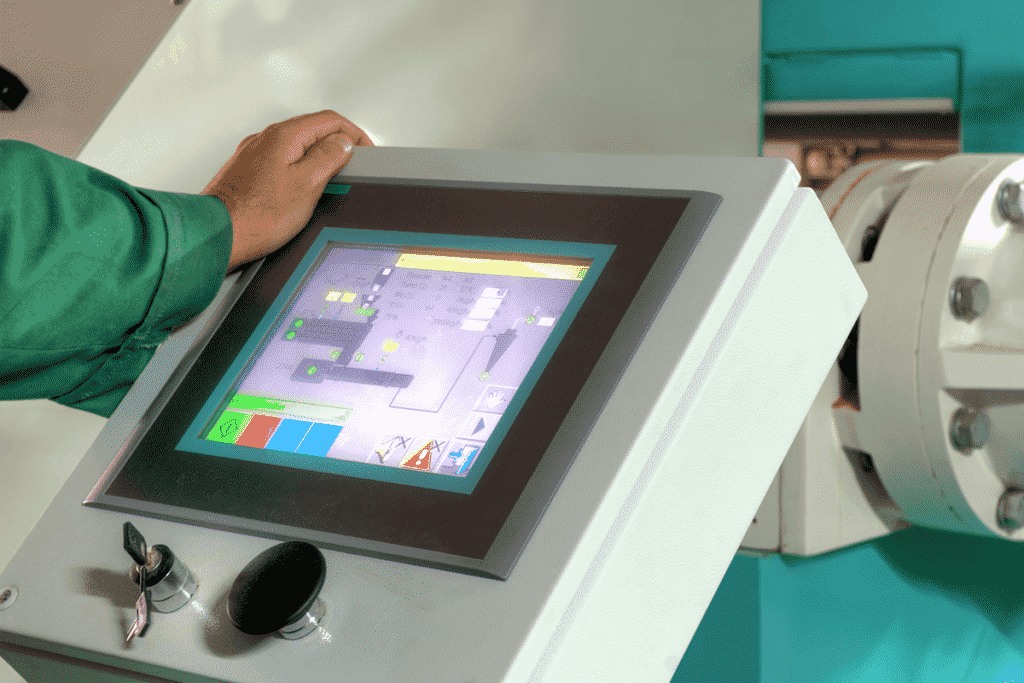

Designing Custom Industrial HMI & Embedded Panel PCs Housings

In modern automated smart factories, process control facilities, and outdoor IoT deployments, Human-Machine Interfaces (HMIs) and embedded panel PCs act as core control centers. However, extreme temperatures, heavy dust, moisture, and intense electromagnetic radiation threaten sensitive electronics daily. Choosing a reliable custom industrial HMI enclosure becomes essential to ensure operational continuity. As an ISO-certified custom metal enclosure manufacturer, SanJun Hardware provides high-precision sheet metal enclosure fabrication tailored specifically to the rigorous demands of industrial automation.

Engineering Design Essentials for Harsh Industrial Environments

Designing a rugged industrial computer housing requires a strategic balance between physical protection, internal component arrangement, and long-term operating reliability.

IP65 Protection and Environmental Sealing Solutions

To safeguard internal touchscreens and motherboard components against ingress from washdown procedures and ambient airborne contamination, specialized mechanical sealing structures are implemented in every IP65 enclosure.

• Precision Gasket Grooves: Custom CNC bending and laser-cut channels accommodate seamless polyurethane liquid gaskets or rubber seals to achieve true IP65 enclosure performance.
• Watertight Cable Gland Pass-Throughs: Engineered cutouts accommodate multi-pin industrial connectors and sealed cabling interfaces, preventing moisture ingress at connection points across the custom metal enclosure.
• Corrosion-Resistant Finishes: Applying specialized outdoor powder coatings over galvanized steel or aluminum prevents rust caused by chemical exposure or extreme humidity.

Advanced EMI Shielding and Thermal Management Integration

Industrial displays and embedded PCs operate in high-voltage environments where electrical noise can disrupt touch sensing accuracy or signals.

• Conductive Surface Treatments: Incorporating chromate conversion coatings or unpainted conductive contact surfaces builds an effective EMI shielding enclosure.
• Passive & Active Heat Dissipation: Integrated rear heat-sink mounting fins, honeycomb ventilation louvers, and fan cutouts optimize passive airflow within the embedded panel PC enclosure to prevent component overheating.
• Structural Rigidity: Utilizing reinforced ribbing and high-tensile sheet materials prevents casing deformation during heavy touchscreen interaction or machine vibration.

Precision Custom Sheet Metal Fabrication Services by SanJun Hardware

As a leading industrial enclosure supplier and electronic enclosure manufacturer, SanJun Hardware delivers end-to-end production services through advanced sheet metal enclosure fabrication that converts initial CAD concepts into production-ready housing hardware.

End-to-End OEM Sheet Metal Fabrication and DFM Support

Our in-house production line integrates full manufacturing capabilities to fulfill tight tolerances and specialized hardware integration requirements through expert OEM sheet metal fabrication.

• DFM Optimization& Prototyping: Experienced engineers review client drawings to optimize bend radii, hole positions, and material utilization, turning prototypes into cost-effective production designs for any custom industrial HMI enclosure.
• Advanced CNC Machinery: Utilizing high-speed laser cutting machines, AMADA CNC punch presses, and CNC bending brakes, we ensure tight dimensional accuracy down to ±0.05mm across all OEM sheet metal fabrication projects.
• Integrated Hardware & Fasteners: Automatic riveting systems precisely press PEM studs, standoffs, and nuts into thin-gauge metal walls, ensuring rock-solid PCB and monitor mounting points.
• Full Value-Added Assembly: Beyond metal cutting and welding, our team at SanJun Hardware installs display glass, acrylic panels, sealing strips, and mounting brackets, delivering fully assembled custom metal enclosure units.

Industrial Product Portfolio Tailored for Automation

As a trusted custom aluminum housing supplier and industrial enclosure supplier, we manufacture a versatile series of customized housings designed to accommodate diverse screen sizes, mounting formats, and industrial applications.

• Industrial Monitor Enclosures: Rugged wall-mounted or VESA-compatible steel housings designed for heavy-duty display screens used on automated assembly lines.
• Embedded Panel PC Enclosures: Compact solutions crafted by an experienced custom aluminum housing supplier, engineered with slim bezels and efficient rear heat sinks for flush cabinet installation.
• Self-Service Kiosk Enclosures: Durable freestanding or wall-hung sheet metal enclosure fabrication designs built for interactive public or industrial self-service terminals.
• Digital Signage Housings: Heavy-duty, weather-resistant custom metal enclosure solutions tailored for outdoor information displays requiring internal temperature control and sunlight protection.

Application Scenarios and Problem-Solving Value

Tailored custom metal enclosure solutions directly resolve operational bottlenecks across diverse industrial settings.

Factory Automation and Process Control Units

In CNC machining workshops, food processing plants, and automotive assembly lines, standard off-the-shelf enclosures often fail due to oil mist, chemical washdowns, and physical impacts.

• Eliminating Ingress Failures: Customized embedded panel PC enclosure structures with dual-layer sealing prevent oil mist and airborne particulates from contaminating internal touch controllers.
• Resolving Touchscreen Drift: Grounded metal bezels and continuous seam welding in each EMI shielding enclosure dissipate static charges and high-frequency interference, maintaining screen response accuracy.
• Optimizing Maintenance Access: Quick-release rear doors and hinged access panels reduce machine downtime during routine hardware upgrades or maintenance.

Outdoor Terminal and Smart Infrastructure Systems

Outdoor parking control systems, municipal kiosks, and smart energy monitoring stations require specialized protective housings to withstand harsh environmental conditions year-round.

• All-Weather Thermal Control: Internal mounting baffles and integrated fan/heater brackets within the industrial computer housing accommodate environmental control systems, ensuring operational stability from -20°C to +60°C.
• Vandalism and Impact Protection: High-gauge cold-rolled steel or reinforced stainless steel construction prevents physical tampering and protects sensitive display glass in unmonitored locations.
• Seamless System Integration: Custom mounting studs and modular internal chassis layouts designed by our electronic enclosure manufacturer team allow rapid installation of power supplies, motherboards, and wireless communication modules.

Ready to Upgrade Your Industrial Display Housings?

Partner with SanJun Hardware—a premier custom metal enclosure manufacturer and industrial enclosure supplier—for reliable OEM sheet metal fabrication and custom housing solutions. Whether you need rapid prototyping or full-scale contract manufacturing for your custom industrial HMI enclosure or embedded panel PC enclosure line, our engineering team provides free DFM reviews and tailored quotes to fit your project timeline.

Contact us today to discuss your custom metal enclosure project with our engineering experts!

FAQ

Q: What materials are best suited for custom industrial HMI enclosures?

A: Cold-rolled steel, galvanized steel, stainless steel (304/316), and aluminum alloys (5052/6061) show up most often in real projects. As a specialized custom aluminum housing supplier, we usually suggest aluminum because it trims weight while moving heat away from internal parts. Stainless steel works well in food or medical environments where constant cleaning and moisture call for strong corrosion resistance.

Q: How do custom metal enclosures achieve IP65 or higher ingress ratings?

A: Reaching a true IP65 enclosure rating starts with continuous seam welding to close every joint. Precision CNC-bent gasket channels hold the seal in place, while poured polyurethane or EPDM fills the gaps. Watertight cable gland fittings then protect all panel cutouts so dust and water stay out during daily use.

Q: Why is custom sheet metal fabrication preferred over off-the-shelf plastic enclosures for panel PCs?

A: Precision sheet metal enclosure fabrication delivers higher structural rigidity than plastic can match. It also moves heat away without extra fans and gives complete EMI shielding enclosure performance. Teams gain layout flexibility without paying for new plastic molds each time a change comes up.

Q: What key design details should be considered for heat dissipation in sealed HMI housings?

A: When planning a sealed industrial computer housing or embedded panel PC enclosure, engineers add rear-integrated aluminum heat sinks behind the hottest components. Internal conduction blocks carry heat straight to the outer shell. Louvered or mesh vent covers help when some airflow is acceptable in the setting.
