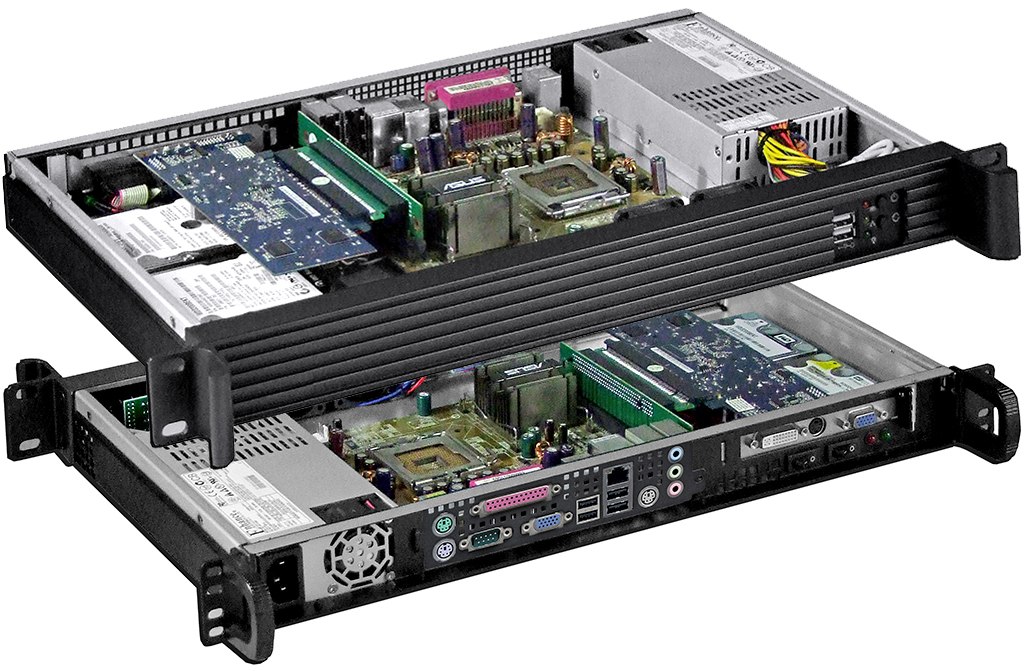

1U Chassis Design: Balance Slim Profile with Max Cooling

The fast growth of artificial intelligence, high-performance computing, and edge systems has pushed huge amounts of processing power into data centers everywhere. To make the most of space inside standard server racks, companies turn to dense setups. Yet fitting strong processors, memory, and power units into a slim 1U case brings tough heat problems. SanJun Hardware works as a leading partner in precision sheet metal fabrication. The company develops custom OEM/ODM solutions that handle these tight space and cooling limits so equipment runs safely for long periods.

The 1U Chassis Thermal Dilemma in Next-Gen Computing

Putting high-power parts into a 1U rack-mounted chassis creates real limits in size and heat flow that call for careful structural work.

Spatial Constraints and Heat Density

A standard 1U enclosure stands only 1.75 inches tall, or 44.45 mm. This leaves very little space for big heatsinks or large fans.

• Ultra-Slim Profiles: The low height gives almost no extra room for traditional cooling parts in a rack-mounted chassis.
• Concentrated Heat Sources: AI accelerators and multi-core CPUs produce heavy heat in small areas. This heat needs quick removal to stop performance drops.
• Component Obstruction: Dense layouts inside leave little open space. Every sheet metal fabricationpiece must help move air instead of stopping it.

Airflow Resistance and Turbulence

Smooth airflow through such a narrow space needs good coordination between fan positions and openings in the case.

• Static Pressure Requirements: Packed interiors mean fans work against strong resistance to move air from front to back.
• Vortex and Dead Zones: Bad internal parts can create spots where air sits still or spins in circles. These areas build up dangerous heat near key modules.
• Acoustic and Power Trade-Offs: Raising fan speeds adds noise and uses more electricity. Good passive design in the rack-mountedchassis becomes the main way to manage airflow.

Precision Machining Solutions for Advanced Thermal Management

Solving cooling limits in 1U units takes advanced sheet metal fabrication methods that create exact openings while keeping the structure strong.

Engineering Perfect Honeycomb Ventilation Arrays

Creating plenty of ventilation area without losing strength in a thin rack-mounted chassis depends on accurate manufacturing.

• Optimized Open-Area Ratios: Hexagonal patterns give the best balance of open space to solid surface. They let more air pass through the front and rear panels of the rack-mounted chassis.
• Eliminating Structural Warping: Punching many small holes close together can bend the metal. SanJun Hardwareuses CNC punch presses to keep panels flat.
• Deburring and Airflow Smoothing: Small rough edges on holes cause extra resistance. Post-processing steps remove them completely for smoother air movement.

Micro-Tolerance Isolation Plates and Airflow Ducts

Guiding cool air to the right spots needs exact divider walls that fit tight inside the limited space.

• Strict ±0.01mm Alignment: Internal plates are made with ±0.01mm accuracy. This ensures they line up perfectly with fans and circuit boards.
• Sealing and Pressure Maintenance: The close fit directs all cooling air along the intended paths instead of letting it escape to cooler areas.
• Space-Saving Bending Profiles: CNC press brakes form tight bends on brackets. This approach leaves more room for the actual computing parts.

Material Selection Analysis: Aluminum Alloys vs. Galvanized Steel (SGCC)

Picking the right metal for a 1U rack-mounted chassis means weighing heat transfer, strength, and cost.

High Thermal Conductivity Aluminum Alloys

Aluminum alloys work well for edge equipment and special telecom sheet metal cabinets.

• Active Heat Dissipation: The metal pulls heat from components and spreads it across the whole rack-mountedchassis surface.
• Lightweight Advantages: These setups cut total weight in rack clusters. Lower weight reduces shipping fees and eases pressure on data center floors.
• Premium Finishing Options: Aluminum takes anodized coatings that resist corrosion and look clean over time.

Galvanized Steel (SGCC & SECC) Economics

Steel serves as the common choice for big data center builds.

• Unmatched Mechanical Rigidity: SGCC steel keeps thin 1U covers from bending when heavy units sit above them in racks.
• Superior EMI/RFI Shielding: The material blocks electromagnetic interference naturally. This protects servers in crowded setups from signal issues.
• Cost-Efficient Scalability: Galvanized steel offers good value for large production runs where keeping prices competitive matters.

Optimizing Manufacturing Costs Through Professional DFM Reviews

A strong design-for-manufacturing check bridges the gap from concept to cost-effective production.

Streamlining Production Without Expensive Tooling

Early reviews help teams avoid high upfront costs.

• Zero-Tooling Prototyping: Laser cutting and CNC sheet metal fabrication support orders as small as one piece. Customers test cooling performance before larger commitments.
• Simplifying Complex Forms: Engineers study 3D models and suggest single-piece designs. These changes cut down welds and assembly steps.
• Standardizing Fastener Interfaces: Adding common rivets and inserts early removes extra tapping work and speeds up volume runs.

Comprehensive Quality Control and Global Supply Chain Ready

Delivering thousands of enclosures worldwide with no defects needs solid quality systems.

• End-to-End Quality Inspections: Under ISO standards, checks happen from material cutting to final coating. This process catches issues early.
• Advanced Surface Coating Solutions: Powder coatings and painting options provide durability and consistent appearance across batches.
• Export-Standard Packaging and Logistics: Strong crates protect units during long shipping. They arrive ready for integration at customer sites.

Maximize Your Rack Density with SanJun Hardware

If space and heat limits slow down your server or network projects, team up with SanJun Hardware. The company offers OEM/ODM sheet metal fabrication services with more than 15 years of experience in precision work. Send your 2D or 3D drawings now. The engineering group will provide a detailed review and quote within 24 hours.

[Contact Our Engineering Team Today to Accelerate Your Project]

FAQ

Q: How does sheet metal hole geometry affect overall cooling performance in high-density 1U enclosures?

A: Hexagonal honeycomb patterns reach up to an 80% open-area ratio. They create less resistance to airflow than round or square holes while keeping the panel strong enough for daily use.

Q: Why is positional tolerance critical for internal airflow isolation plates?

A: A gap as small as 0.5mm lets air escape from the main cooling paths. This drop in efficiency creates hot spots that can harm components during heavy loads.

Q: Which material thickness is recommended for balancing 1U chassis rigidity with thermal efficiency?

A: Thicknesses from 1.0mm to 1.2mm for SGCC steel or 1.5mm for aluminum alloys usually offer the right mix. They support good load capacity without taking up extra space or adding too much weight.

Q: Can custom surface treatments improve electromagnetic compatibility alongside heat dissipation?

A: Yes. Conductive coatings and careful masking during painting create solid electrical grounding. This setup supports EMI shielding and helps with heat movement from the surface.
