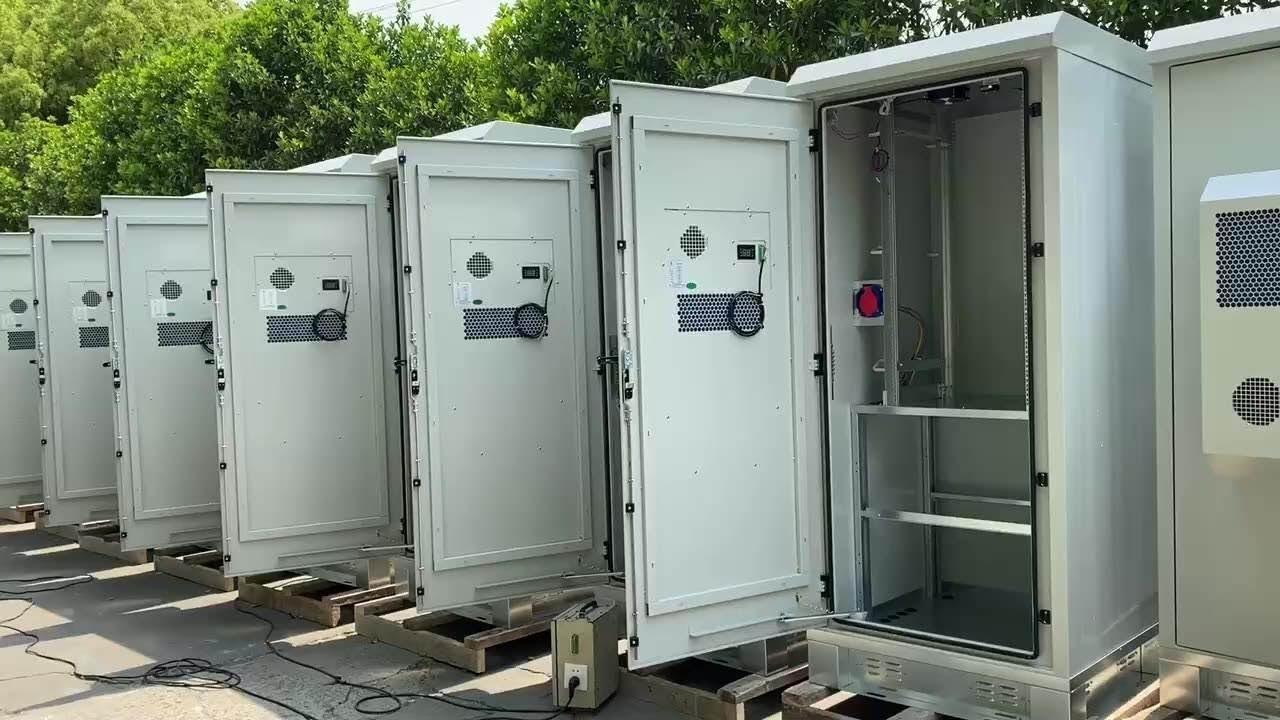

Precision Alignment for Multi-Interface Telecom Housings

High-density telecom architecture requires a modern communication chassis enclosure to support an increasing number of optical, data, and power connectors on a single backplate. Ensuring seamless interface alignment across dozens of tight-tolerance cutouts presents a major engineering hurdle in modern telecom sheet metal enclosure manufacturing. As a trusted OEM/ODM precision sheet metal fabrication manufacturer, SanJun Hardware provides advanced engineering and precision alignment solutions engineered to maintain strict dimensional accuracy within 0.01mm across complex multi-interface panels for every telecom enclosure.

Cumulative Tolerance Challenges in Multi-Port Backplates

Integrating multiple input/output connectors into a single backplate creates complex geometric tolerance stack-up constraints during production. Managing structural rigidity alongside precise connector alignment requires careful evaluation of both thermal and mechanical variables to minimize total assembly tolerance issues.

Identifying Tolerance Stack-Up in Multi-Connector Panels

Multi-port backplates suffer from microscopic dimensional shifts during multi-stage metal processing, which leads to tolerance stack-up across long panels.

• Cumulative Pitch Drift: Microscopic deviations in cut-to-cut spacing accumulate over long panel spans, causing noticeable displacement at peripheral ports and ruining interface alignment.
• Material Punching Stress: High-density hole arrays create localized stress concentrations that alter sheet flatness, affecting connector alignment and distorting neighboring cutouts.
• Thermal Expansion Variations: Heat generated during high-speed cutting causes slight structural expansion, compromising final dimensional accuracy and causing pitch misalignment upon cooling.

Operational Impact of Interface Misalignment

Imperfect connector alignment degrades equipment performance and increases overall system assembly costs across every custom telecom enclosure.

• Connector Header and Pin Damage: Sub-millimeter position offsets force connectors against port edges, causing bent pins, contact wear, and severe PCB strain during chassis integration.
• Compromised EMI Shielding Integrity: Uneven port cutouts prevent uniform compression of conductive gaskets, leading to EMI shielding gaps, RF leakage, and signal crosstalk.
• Increased Assembly Line Downtime: Field integration technicians lose time manually adjusting misaligned faceplates during high-density network rack installation due to excessive assembly tolerance drift.

CNC Punching and Laser Cutting Precision Parameters

Achieving repeatable interface alignment requires a synchronized manufacturing strategy combining rigorous DFM analysis, tight machinery calibration, and optimized material processing routines in precision sheet metal fabrication.

Material Selection and Stress Relief Practices

Selecting premium raw materials and managing residual stress forms the baseline for high-precision telecom sheet metal enclosure panels.

• High-Grade Sheet Metal Selection: Utilizing tension-leveled cold-rolled steel, aluminum, and electro-galvanized sheet ensures uniform thickness and predictable bending behavior for superior dimensional accuracy.
• Laser Cutting Thermal Management: Applying optimized pulse frequency and micro-joint nesting minimizes the heat-affected zone (HAZ) to maintain precision alignment and structural flatness.
• DFM Spring-Back Compensation: Advanced 3D unfolding algorithms calculate precise K-factors to offset material spring-back across multiple bend radii, controlling assembly tolerance.

Tooling Optimization and CNC Punching Calibration

Advanced CNC tooling and zero-datum positioning ensure that every cutout achieves exact connector alignment with internal circuit boards inside the communication chassis enclosure.

• Precision CNC Tooling Alignment: Utilizing high-tonnage CNC punch press equipment preserves punch-and-die clearance, eliminating burrs and cut edge tapering to ensure dimensional accuracy.
• Single-Setup Multi-Port Execution: Cutting all interface cutouts and mounting holes within a single clamping setup eliminates re-positioning errors and resolves tolerance stack-up.
• Strategic Sequence Punching: Distributing punching sequences across the panel distributes mechanical stress evenly, maintaining tight interface alignment and preventing localized warping.

Quality Verification using Coordinate Measuring Machines (CMM)

Comprehensive quality verification converts tighter design tolerances into reliable mass-production consistency for every telecom enclosure.

CMM Inspection for Multi-Axis Spatial Accuracy

Automated 3D inspection verifies multi-port geometry against original CAD datasets before final coating application to ensure precision alignment.

• Multi-Point Spatial Mapping: Coordinate Measuring Machines (CMM) measure hole center-to-center distances, hole diameters, and true position tolerances relative to datum features to maintain dimensional accuracy.
• Statistical Process Control (SPC): Real-time SPC tracking identifies minor tool wear or machine thermal drift before parts exceed allowable assembly tolerance limits.
• 100% Critical Feature Inspection: Key mounting cutouts for high-density Network Device Chassis undergo full dimensional verification to guarantee connector alignment.

Integrated Assembly Testing and EMI Shielding Validation

Physical mock-up testing guarantees smooth field installation and robust environmental protection for every custom telecom enclosure.

• Real-Connector Mock-Up Fitting: Test jigs populated with actual PCB connector blocks verify smooth insertion force without port binding or interface alignment issues.
• EMI Shielding Gasket Compression Checks: Controlled depth testing ensures conductive gaskets seal tightly for maximum EMI shielding without distorting thin enclosure walls.
• Field-Ready Telecom Solutions: Verified alignment supports specialized builds including Telecom Communication Cabinets, Fiber Optic Distribution Boxes, and custom 1U-4U rack-mounted communication chassis enclosure units.

End-to-End Design Engineering and Custom OEM/ODM Services

SanJun Hardware integrates expert design support with flexible manufacturing to convert complex telecom sheet metal enclosure concepts into high-precision, production-ready solutions.

Advanced Design Optimization and Engineering Support

Our engineering team works closely with clients right from the start. They refine CAD models and improve structural performance in precision sheet metal fabrication.

• Comprehensive DFM Reviews: Experienced engineers check 2D/3D CAD models. They set hole-to-bend margins, pick suitable materials, and handle structural tolerance stack-up issues.
• Rapid Prototyping and Validation: Fast functional prototypes help teams verify mechanical fitting, interface alignment, cable routing, and thermal behavior before full-scale manufacturing.

Full-Service Manufacturing and Modular Assembly Solutions

We go beyond single sheet metal parts. We supply complete turnkey solutions that match exact project needs for any telecom enclosure.

• Turn-Key Hardware Assembly: Integration services cover PEM fastener insertion, mounting conductive EMI shielding gaskets, wiring harness installation, and assembly of internal chassis racks.
• Custom Surface Finishing Options: We handle all finishing in one place. Steps include electrostatic powder coating, anodizing, electroplating, and custom silkscreen branding for lasting protection.
• Flexible Volume Scalability: Production lines shift smoothly from low-volume custom telecom enclosure prototyping to high-capacity OEM/ODM mass production.

Accelerate Your Telecom Chassis Engineering with SanJun Hardware

Eliminate interface alignment bottlenecks and protect your sensitive communication electronics. SanJun Hardware delivers end-to-end precision sheet metal fabrication, offering tailored DFM reviews, rapid prototyping, and automated production for every communication chassis enclosure.

Contact our engineering team today to upload your 2D/3D CAD drawings and receive a comprehensive manufacturing feedback report and competitive quote within 24 hours!

FAQ

Q: How does tolerance stack-up affect multi-port telecom chassis assembly?

A: Accumulated manufacturing tolerances and tolerance stack-up cause physical misalignment between PCB connectors and sheet metal cutouts, leading to insertion strain, connector alignment failures, pin damage, and assembly delays.

Q: What fabrication methods maintain 0.01mm alignment across complex backplates?

A: Combining single-setup CNC punching/laser cutting with strategic stress-relief sequencing, precise K-factor bend compensation, and dynamic CMM verification maintains high dimensional accuracy and precision alignment in precision sheet metal fabrication.

Q: Why is EMI shielding critical in multi-interface telecom sheet metal enclosures?

A: High-density interface cutouts in a telecom sheet metal enclosure can leak electromagnetic interference if port edges suffer from improper interface alignment, preventing EMI shielding gaskets from achieving a continuous conductive seal.

Q: How can DFM analysis prevent interface misalignments prior to mass production?

A: DFM analysis evaluates sheet metal thickness variations, hole-to-bend minimum distances, and material spring-back to optimize cutout geometry and maintain tight assembly tolerance control before tooling begins for any custom telecom enclosure.
