In custom sheet metal work, the edge is everything. A razor-sharp edge on a kiosk can slice a nurse’s hand or a child’s finger in seconds. A flimsy door edge on an outdoor cabinet warps the first time someone leans on it. On the other hand, a properly folded and crushed edge turns a plain panel into something strong, safe, and honestly good-looking. That fold is called a hem, and once you see how much difference it makes, you’ll never look at a metal box the same way again.
We are San Jun Hardware, a factory that’s been running since 2010. We cut, bend, weld, and finish custom sheet metal parts for customers all over the world. You’ll find our work in hospitals, fast-food restaurants, roadside digital signs, vending machines, and classroom podiums. When the job calls for safe, stiff edges that last, hemming is one of the first things we reach for.
Right after the laser or punch cuts a blank, every edge is sharp enough to draw blood and weak enough to bend if you grab it wrong. Leaving it that way is asking for trouble.
Fold the edge back on itself, and you double the thickness right at the place that normally flops around the most. A 1.5 mm cold-rolled steel panel with a 180° closed hem acts like it’s 3 mm thick along that side. Doors stop rattling, lids don’t oil-can, and the whole box feels solid when you pick it up.
In medical carts and pharmacy dispensers we build, the cleaning crews bang those doors open and closed hundreds of times a day. A hemmed edge is the difference between a cabinet that stays straight for ten years and one that looks beat-up in six months.

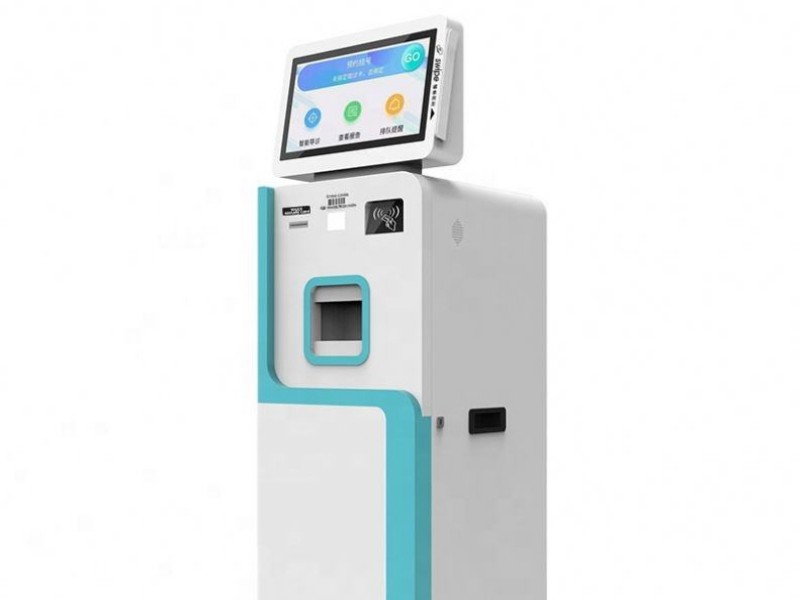

Nobody wants a lawsuit because someone cut their hand on your kiosk. Hospital Self-Service Kiosk Enclosures sit at perfect kid-height, so every outside corner gets either a full closed hem or a generous radius return. The same goes for Intelligent Self-service Cabinets in train stations—drunk passengers lean on them, kids climb them, and the edges still have to stay smooth and safe.
Hemming isn’t just “bend it over.” It’s usually a careful two-step dance so the metal doesn’t crack or bulge.

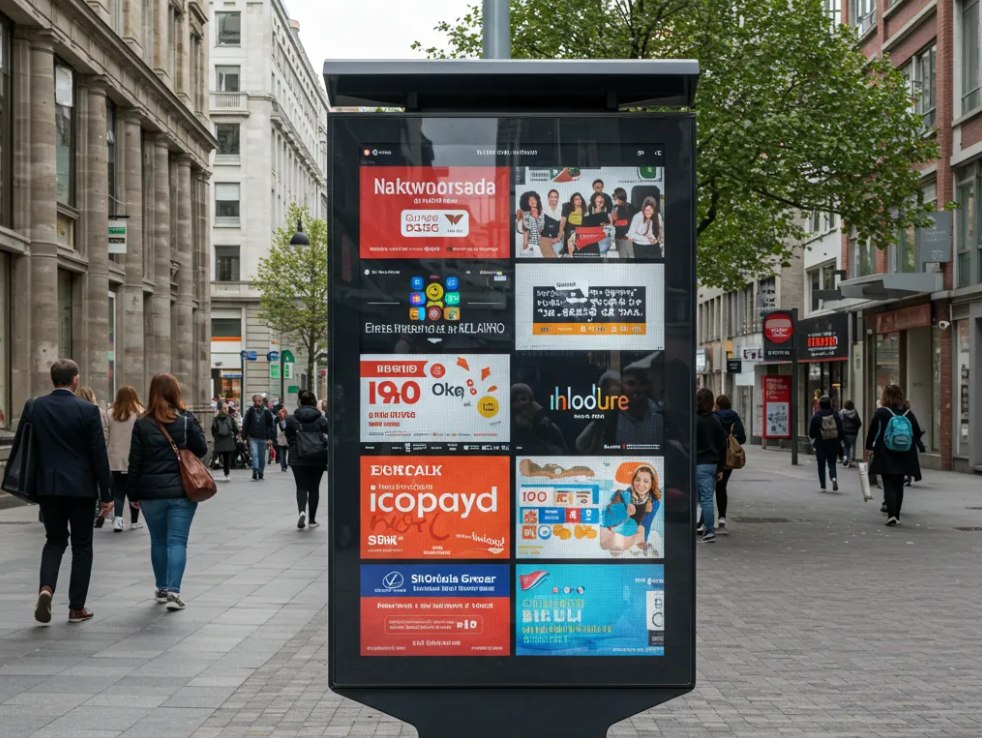

Outdoor boxes take a beating from weather and people. Outdoor Custom Digital Signage Shell IP65 units sit on sidewalks in blazing sun and freezing rain. The doors on these cabinets are 2 mm aluminum with closed hems top and bottom—water can’t sneak in, and the edge won’t peel open after a few seasons. The same heavy hems go on the IP65 Self-service Terminal Integrated Machine Shell you see at gas stations and bus stops.
Walk up to any 24″, 27″, or 32″ Self-service Ordering Kiosk in a burger joint and run your hand along the side. You won’t find a sharp edge anywhere because every visible flange is either hemmed flat or rolled. The same treatment shows up on Custom Automatic Distributor Vending Machines—the doors are thick enough to stop a crowbar, yet the edges feel rounded and friendly.
Everything starts with clean material and clean cuts. We stock cold-rolled steel, galvanized, 304/316 stainless, and several aluminum alloys. The laser cutters (3000 W fiber machines) hold ±0.1 mm on material from 0.5 mm to 2.0 mm thick, so when we fold that hem later, the flap is exactly the right length—no short hems, no bulges.
After cutting, parts move to the AMADA CNC press brakes for the pre-bend and final flattening. Welders then tie multiple panels together with MIG, TIG, or spot welds, depending on material and appearance requirements. The whole line runs under our ISO9001:2008 system, so every hem gets checked with a go/no-go gauge before the part leaves the floor.
A good hem is strong, but powder coat or passivation makes it last. Outdoor pieces get 80–120 μm of UV-stable powder, so the folded edge stays pretty after years of sun. Stainless medical boxes get glass-bead blasted and passivated—the hem stays shiny and germ-free shift after shift.
A hem is only a couple of millimeters of folded metal, but it changes everything: stiffness, safety, looks, and how long the product survives in the real world. At San Jun Hardware, we’ve got the brakes, dies, and people who do this all day, every day. Send us a drawing that calls for safe edges, and we’ll pick the right material, cut it clean, hem it tight, weld it strong, and powder-coat it tough, and ship boxes you can be proud of. No hard tooling charges, samples in 3–7 working days, and the same quality from the first piece to the ten-thousandth.
A: Safe, rounded edges, stronger panels, better looks, and parts that last longer—plus fast quotes and no expensive die costs.
A: ±0.1 mm on our 3000 W laser cutters for material 0.5 mm to 2.0 mm thick.
A: Heavy material, closed hems, fully sealed welds, proper gaskets, and thick UV-resistant powder coat that delivers real IP65/IP66 protection and IK10 impact rating.
A: 3–7 working days after we agree on the price and you sign off on the drawings.
