Custom sheet metal, not off-the-shelf — built around your exact requirements.
Every cabinet on this page was built for a specific project. Your dimensions, materials, protection grade, door layout and cable entries are all decided by you — we handle structure design, process planning, fabrication and testing. This page shows what we have done and what we can do for your project.
Global energy‑storage integrators and EPC contractors frequently face manufacturing obstacles in cabinet sourcing. ‑ Extra high costs for third‑party structural drawing development without mature cabinet designs. ‑ Cabinet deformation caused by heavy battery‑module loads under long‑term running conditions. ‑ Poor matching of internal duct, wiring and component mounting positions leading to difficult assembly. ‑ Inadequate sealing resulting in dust and moisture ingress for indoor and semi‑outdoor sites. ‑ Uneven welding and inferior anti‑corrosion coating shorten cabinet service life.
As a direct sheet‑metal factory, we offer 100% free production‑ready CAD drawing design based on your project requirements. Customers do not need to supply their own sketches.
We adopt thick‑gauge cold‑rolled steel or galvanized steel as raw materials. Full‑process precision fabrication includes laser cutting, CNC bending, heavy‑duty reinforced welding and weather‑resistant outdoor powder coating. Machining tolerance is strictly controlled within ±0.1 mm to guarantee precise fitting for inner BESS components.
The reinforced frame structure effectively prevents cabinet deformation under heavy‑weight battery packs. Pre‑reserved installation positions for cooling ducts, cable routing and power modules simplify field installation and later maintenance. Optional IP54‑IP55 sealing structure ensures stable dust‑proof and waterproof performance for complex working environments.
Full OEM & ODM customizations are supported: adjust dimensions, door layout, ventilation layout, surface RAL colors and laser‑engraved brand logos. Both small‑batch prototype orders and large‑volume project orders are acceptable. Every finished enclosure passes full‑dimension inspection and sealing performance testing before shipment for consistent batch quality.

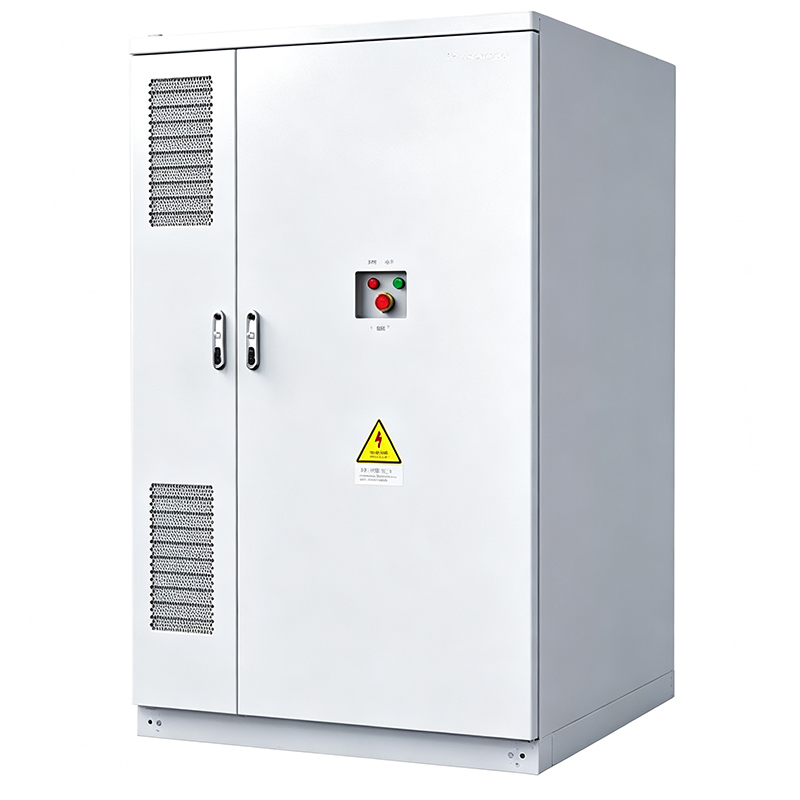

Our C&I integrated BESS power cabinet enclosures apply widely for commercial‑industrial energy‑storage projects, peak‑valley power arbitrage systems, factory backup power supply, solar‑storage hybrid systems, industrial parks and micro‑grid facilities.
No drawings? No problem. Send your power module specs — our engineers deliver manufacturable CAD drawings free of charge, saving you $500+ in third-party design fees and weeks of engineering time.
Get My Free CAD DesignFully custom sizes matched to your power module, battery bank and maintenance clearance.
SPCC, SGCC galvanized, SUS304 or Aluminum 5052; 1.0–3.0 mm per load and budget.
IP54–IP55 sealing packages; upgraded gaskets and glands for harsher environments.
Single / double / front-access / rear-access doors with custom locks and hinges.
Bottom or side entries, sealed gland positions and sizes to your wiring plan.
Vents, fans, heat exchangers or AC integration — engineered to your heat load.
| Custom BESS Energy Storage Cabinet — Capability Range | |
|---|---|
| Material Options | SPCC / SGCC galvanized steel / SUS304 stainless steel / Aluminum 5052 |
| Thickness Range | 1.2 – 3.0 mm (reinforced for battery rack load) |
| Protection Grade | IP54 – IP65 waterproof and dust-proof |
| Surface Treatment | Outdoor weather-resistant powder coating, 60 – 80 μm |
| Thermal Management | Air-cooled / liquid-cooled integration, fan or AC cutouts |
| Fire & Safety | Fire-rated partitions, exhaust vents, sensor mounting points |
| Cable Entry | Bottom / side sealed glands sized to your busbar layout |
| Mounting | Floor-standing with adjustable leveling feet / pad-mount base |
| Rated Capacity | Sized to your pack — from 50 kWh to multi-MWh containers |
| Packaging | Export-grade plywood case with anti-rust film |
* All parameters are adjustable to your project. Contact us for a tailored engineering proposal.
Dimensions, module layout, or even a hand sketch — any format works.
Our engineers review manufacturability and propose structure optimizations.
Production-ready drawings delivered for your confirmation. Unlimited revision until approved.
First article produced with full QC report and photos for your approval.
Batch fabrication with in-process inspection at every critical step.
Export plywood packing, FOB/CIF/DDP shipping, 12–24 months warranty.
Quality inspection reports and photos are provided with each order, so you can confirm workmanship before the goods leave our factory. Third-party inspection (SGS / TÜV / BV) is welcome.
Request QC Report SampleSend specs → factory-direct quote in one business day. Volume pricing: unit cost typically drops 30–50% at 100+ pcs.
T/T 30% deposit, 70% balance before shipment. Sample orders and long-term partners: flexible terms available.
FOB, CIF and DDP supported. Export-grade plywood case with anti-rust film as standard.
12–24 months against manufacturing defects. Responsive after-sales with replacement parts support.
SanJun Hardware supplies custom BESS enclosures to energy storage integrators, solar EPCs and battery manufacturers worldwide. Tier-1 storage brands trust us with their cabinet programs — most started with a prototype and scaled to repeat container orders.
Send your power module specifications — free CAD design and factory-direct quotation within 24 hours.
